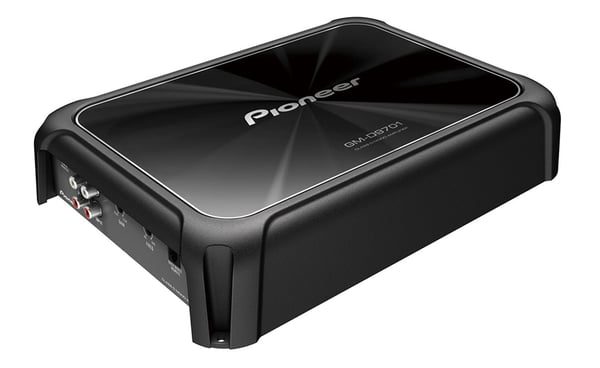

Name: Pioneer GM-D9701 bilforsterker 1-kanals
Brand: Pioneer
SKU: 10462811
Price: 2696 NOK
Availability: InStock

Pioneer GM-D9701 bilforsterker 1-kanals | SKU: 1025900 | Brand: Pioneer | EAN: 4988028421945<br>

color

Ytelse

The total number of independent audio output channels the device can amplify to drive separate speakers.

Antall forsterkerkanaler

The maximum continuous power output measured as Root Mean Square (RMS) in watts.

Maksimal utgangseffekt (RMS)

An electronic amplifier, amplifier, or (informally) amp is an electronic device that increases the power of a signal. It does this by taking energy from a power supply and controlling the output to match the input signal shape but with a larger amplitude. Power amplifier circuits (output stages) are classified as A, B, A/B and C for analog designs, and class D and E for switching designs based on the proportion of each input cycle (conduction angle), during which an amplifying device is passing current.

Forsterker, klasse

An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

Lyd-utgang kanaler

The maximum power (usually measued in watts) that can be transmitted through a channel.

Peak effekt per kanal

Indicates whether the device includes a low pass filter to attenuate high-frequency signals.

Lavpassfilter

The continuous power delivered to a single channel when connected to a load of 1 Ohm, measured in Watts.

RMS utgangseffekt pr. kanal (1 Ohm)

The maximum amount of power the device can deliver to a single channel when connected to a 2 Ohm load, measured in W.

Maksimum utgangskraft per kanal (2 Ohm)

The maximum amount of power the device can deliver to a single channel when connected to a 4 Ohm load, measured in W.

Maksimum utgangskraft per kanal (4 Ohm)

This is the ratio of signal intensity to noise intensity.

Signal-til-støy-forhold (SNR)

Indicates whether the device features a control to manually adjust the level of low-frequency reinforcement.

Variabel bass boost

The lowest and the hightest frequencies that can be inputted/produced.

Frekvensrekkevidde

Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.

Fjernkontroll medfølger

Egenskaper

The colour e.g. red, blue, green, black, white.

Produktfarge

Tekniske detaljer

The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance.

Ytelse
Antall forsterkerkanaler	1 kanaler
Maksimal utgangseffekt (RMS)	2400 W
Forsterker, klasse	D
Lyd-utgang kanaler	1.0 kanaler
Peak effekt per kanal	1200 W
Lavpassfilter	Ja
RMS utgangseffekt pr. kanal (1 Ohm)	1200 W
Maksimum utgangskraft per kanal (2 Ohm)	800 W
Maksimum utgangskraft per kanal (4 Ohm)	400 W
Signal-til-støy-forhold (SNR)	100 dB
Variabel bass boost	Ja
Frekvensrekkevidde	10 - 240000 Hz
Fjernkontroll medfølger	Ja

Egenskaper
Produktfarge	Svart

Tekniske detaljer
Impedans	8 Ω

Vekt og dimensjoner
Bredde	302 mm
Dybde	215 mm
Høyde	60 mm
