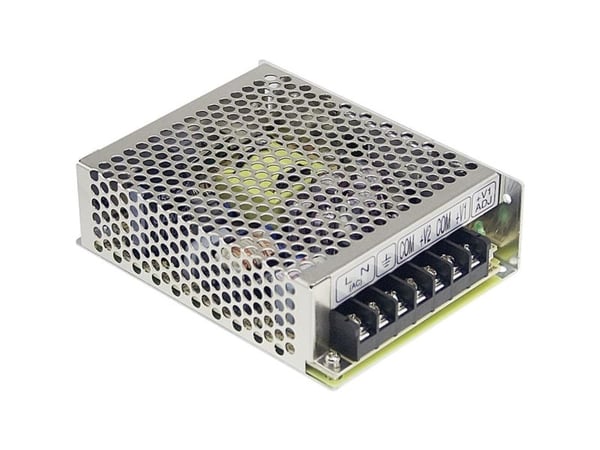

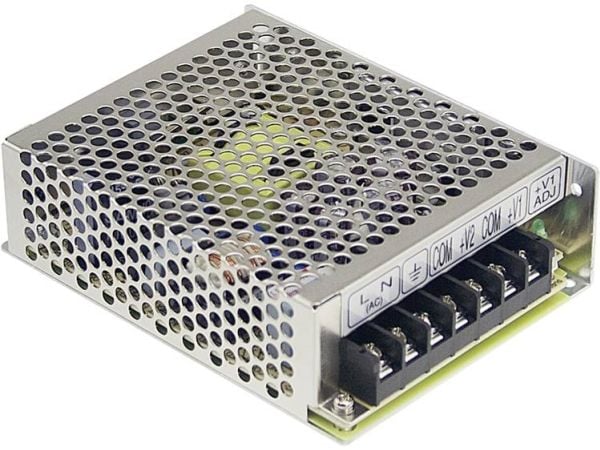

Name: MEAN WELL RD-50A, 54 W, 88 - 264 V, 47 - 63 Hz, 1.3 A, 60 ms, 79%
SKU: 3440061
Price: 414 NOK
Availability: InStock

MEAN WELL RD-50A, 54 W, 88 - 264 V, 47 - 63 Hz, 1.3 A, 60 ms, 79% | SKU: RD-50A | Brand: Mean Well | EAN: 4711287433967<br>

color

weight

Energihåndtering

The total power that is needed by the device

Total strøm

The voltage of the AC electricity that is inputted into the product.

AC-inngangsspenning

The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).

AC-inngangsfrekvens

The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).

Innput-strøm

The duration in milliseconds that the power supply can maintain a stable output voltage during a brief loss of input power.

Holdtid

The percentage of input energy that is converted into useful work or output, rather than being lost as heat or waste (e.g. 92%).

Effektivitet

Features that protect the device against power problems e.g. overload.

Strømbeskyttelsesfunksjoner

Ytelse

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

Gjennomsnittstid mellom feil (MTBF)

Design

Produktfarge

The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).

LED-indikatorer

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.

Relativ luftfuktighet under drift (H-H)

The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.

Lagringsrelativ fuktighet

Safety regulation & standards

List of regulatory safety standards for all countries in which this product has been certified.

Sikkerhet

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible

Vekt

Andre funksjoner

The time required for a signal or voltage to transition from a specified low value to a specified high value, measured in milliseconds or microseconds.

MEAN WELL RD-50A, 54 W, 88 - 264 V, 47 - 63 Hz, 1.3 A, 60 ms, 79%

414 kr

414 kr

Produktbeskrivelse

MEAN WELL RD-50A, 54 W, 88 - 264 V, 47 - 63 Hz, 1.3 A, 60 ms, 79%

414 kr

414 kr

Energihåndtering
Total strøm	54 W
AC-inngangsspenning	88 - 264 V
AC-inngangsfrekvens	47 - 63 Hz
Innput-strøm	1.3 A
Holdtid	60 ms
Effektivitet	79%
Strømbeskyttelsesfunksjoner	Over-spenning (volt), Overbelastning, Kortslutning

Ytelse
Gjennomsnittstid mellom feil (MTBF)	172600 timer

Design
Produktfarge	Metallisk
LED-indikatorer	Ja

Miljømessige forhold
Driftstemperatur (T-T)	-25 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 85 °C
Relativ luftfuktighet under drift (H-H)	20 - 90%
Lagringsrelativ fuktighet	10 - 95%

Safety regulation & standards
Sikkerhet	UL60950-1, TUV EN60950-1 approved

Vekt og dimensjoner
Bredde	97 mm
Dybde	99 mm
Høyde	36 mm
Vekt	410 g

Andre funksjoner
Rensetid	20 ms

MEAN WELL RD-50A, 54 W, 88 - 264 V, 47 - 63 Hz, 1.3 A, 60 ms, 79%

414 kr

414 kr

Produktbeskrivelse

Spesifikasjoner

MEAN WELL RD-50A, 54 W, 88 - 264 V, 47 - 63 Hz, 1.3 A, 60 ms, 79%

414 kr

414 kr
