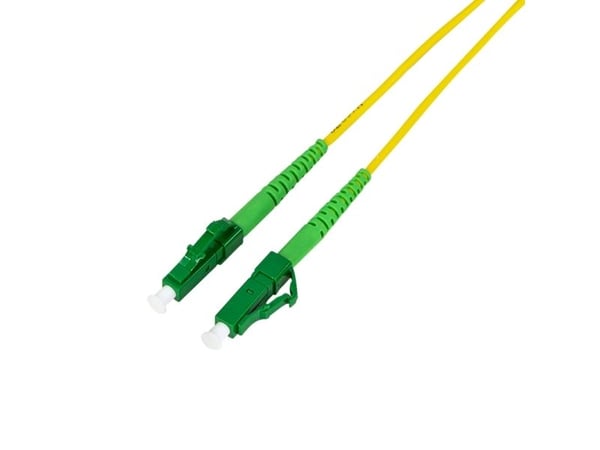

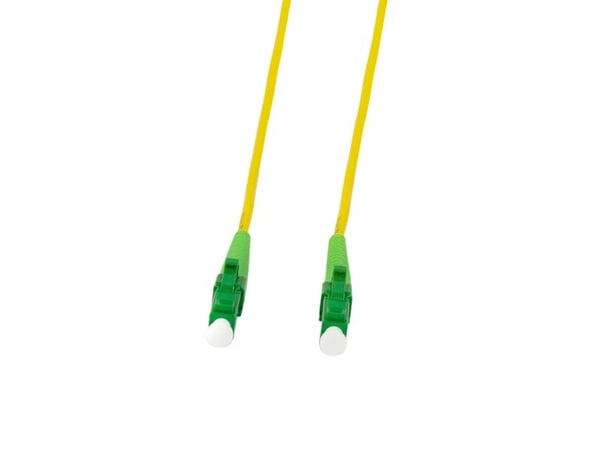

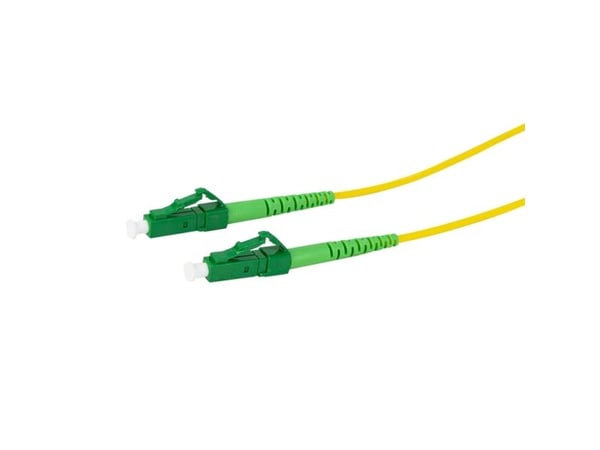

Name: LogiLink FPSLC10, 10 m, OS2, LC, LC
SKU: 8093998
Price: 197 NOK
Availability: InStock

LogiLink FPSLC10, 10 m, OS2, LC, LC | SKU: FPSLC10 | Brand: LogiLink | EAN: 4052792066111<br>

color

weight

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

The specific geometry and finish of the fiber optic connector end-face to minimize signal loss, such as APC or UPC.

Etterbehandlingstype på kontakt

Produktfarge

Kjernediameter

Kledningsdiameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibermodusstruktur

The specific light frequencies, measured in nanometres, that the product is designed to transmit or receive (e.g. 1310).

Støttede bølgelengder

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Innsettingstap

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Avkastning tap

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

Vekt og dimensjoner

The distance from one side of the cable to the other

Kabeldiameter

Weight of the product without packaging (net weight). If possible

Vekt

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

Emballasjeinnhold

The number of individual units contained within a single sales package, measured in pc(s).

LogiLink FPSLC10, 10 m, OS2, LC, LC

197 kr

197 kr

Early Black Friday er i gang: se alle deals

Produktbeskrivelse

LogiLink FPSLC10, 10 m, OS2, LC, LC

197 kr

197 kr

Early Black Friday er i gang: se alle deals

Egenskaper
Kabellengde	10 m
Fiberoptisk type	OS2
Tilkobling 1	LC
Tilkobling 2	LC
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Etterbehandlingstype på kontakt	APC
Produktfarge	Gult
Kjernediameter	9 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Enkeltmodus
Støttede bølgelengder	1310 nm
Innsettingstap	0,3 dB
Avkastning tap	60 dB
Jakkemateriale	Low smoke zero halogen (LSZH)

Vekt og dimensjoner
Kabeldiameter	2 mm
Vekt	42 g

Datainnpakking
Pakkebredde	22 mm
Pakkedybde	22 mm
Pakkehøyde	6 mm
Pakkevekt	44 g

Emballasjeinnhold
Antall per pakke	1 stykker
