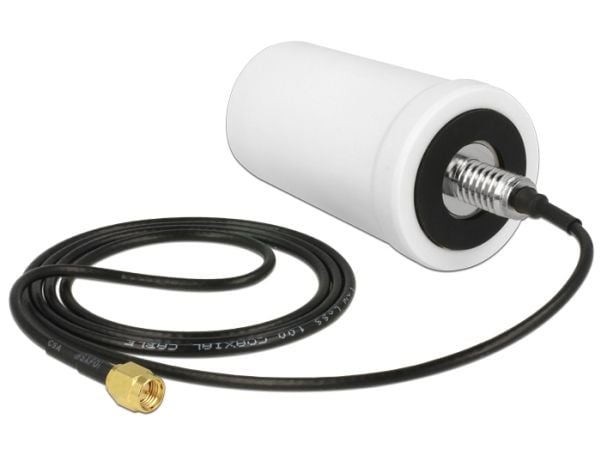

Name: Delock - Antenne - mobiltelefon - 1.6 dBi
SKU: 3003577
Price: 567 NOK
Availability: InStock

Delock - Antenne - mobiltelefon - 1.6 dBi | SKU: 88986 | Brand: DeLOCK | EAN: 4043619889860<br>

color

Ytelse

A small section of the spectrum of radio communication frequencies

Frekvensbånd og driftskanaler

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction

Antenne forbedringsnivå (max)

Egenskaper

Antennetype

The way in which the antenna is connected to the device e.g. coaxial.

Antennetilkoblingstype

The ratio of the voltage standing wave pattern's maximum to minimum amplitude, indicating the efficiency of power transmission and the degree of impedance matching between the device and the transmission line.

Voltage Standing Wave Ratio (VSWR)

Produktfarge

Kabellengde

Kabeltype

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Distance from one side of a body (circle or sphere) to the other side

Delock - Antenne - mobiltelefon - 1.6 dBi

567 kr

567 kr

Produktbeskrivelse

Delock - Antenne - mobiltelefon - 1.6 dBi

567 kr

567 kr

Ytelse
Frekvensbånd og driftskanaler	0.824 - 0.96 / 1.71 - 2.17 GHz
Antenne forbedringsnivå (max)	1,6 dBi

Egenskaper
Antennetype	Rundtstrålende antenne
Antennetilkoblingstype	SMA

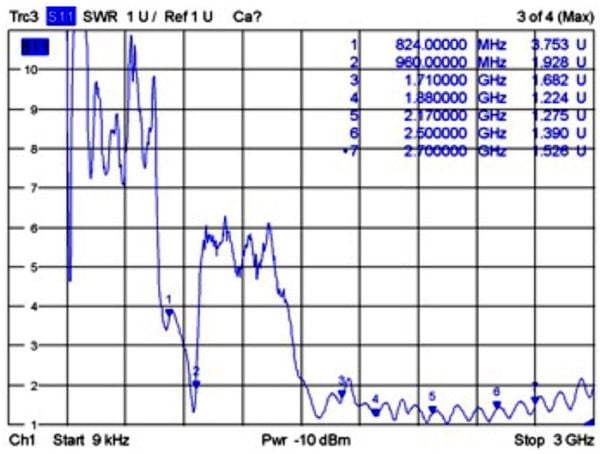

Voltage Standing Wave Ratio (VSWR)	4,0
Produktfarge	Svart, Hvit
Kabellengde	1 m
Kabeltype	ULA 100 Coax

Miljømessige forhold
Driftstemperatur (T-T)	-10 - 55 °C

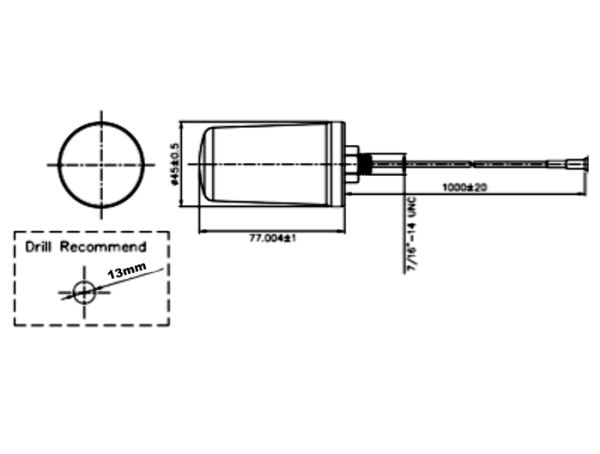

Vekt og dimensjoner
Bredde	45 mm
Dybde	45 mm
Høyde	77 mm
Diameter	4,5 cm
