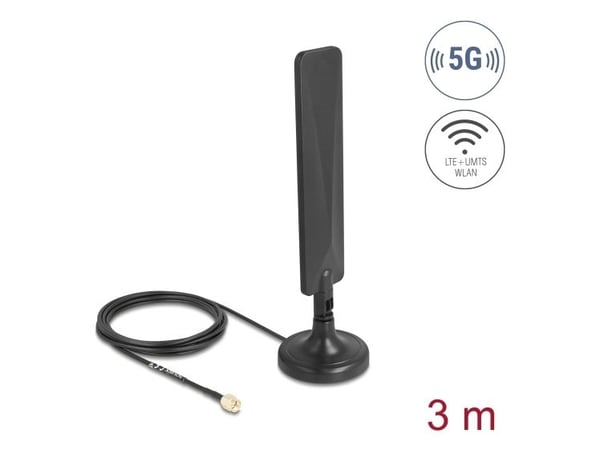

Name: DeLOCK 10040 5G LTE-antenne 3 dBi SMA-hann RG-174 3 m svart
SKU: 24482427
Price: 351 NOK
Availability: InStock

DeLOCK 10040 5G LTE-antenne 3 dBi SMA-hann RG-174 3 m svart | SKU: 10040 | Brand: DeLOCK | EAN: 4043619100408<br>

color

Ytelse

A small section of the spectrum of radio communication frequencies

Frekvensbånd og driftskanaler

The effective resistance of an electric circuit or component to alternating current

Impedans

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction

Antenne forbedringsnivå (max)

Egenskaper

Antennetype

The way in which the antenna is connected to the device e.g. coaxial.

Antennetilkoblingstype

To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male.

Kontaktkjønn

The orientation of the electric field relative to the Earth's surface (e.g. Horizontal or Circular polarization).

Polarisering

The ratio of the voltage standing wave pattern's maximum to minimum amplitude, indicating the efficiency of power transmission and the degree of impedance matching between the device and the transmission line.

Voltage Standing Wave Ratio (VSWR)

Produktfarge

What the casing of the product is made of.

Kroppsmateriale

Kabellengde

Kabeltype

Formål

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Datainnpakking

Pakketype

Mobilt nettverk

The specific fourth-generation cellular network technology supported by the device (e.g., LTE or LTE-A).

4G standard

The third-generation wireless communication technologies supported by the device (e.g. HSPA or EVDO).

3G-standarder

Emballasjeinnhold

The number of individual units contained within a single sales package, measured in pc(s).

DeLOCK 10040 5G LTE-antenne 3 dBi SMA-hann RG-174 3 m svart

351 kr

351 kr

Produktbeskrivelse

DeLOCK 10040 5G LTE-antenne 3 dBi SMA-hann RG-174 3 m svart

351 kr

351 kr

Ytelse
Frekvensbånd og driftskanaler	0.6 - 6 GHz
Impedans	50 Ω
Antenne forbedringsnivå (max)	3 dBi

Egenskaper
Antennetype	Rundtstrålende antenne
Antennetilkoblingstype	SMA
Kontaktkjønn	Hankjønn
Polarisering	Lineær, vertikal
Voltage Standing Wave Ratio (VSWR)	2,0
Produktfarge	Svart
Kroppsmateriale	Akrylonitril-butadien-styren (ABS)
Kabellengde	3 m
Kabeltype	RG-174
Formål	Innendørs

Miljømessige forhold
Driftstemperatur (T-T)	-40 - 70 °C

Vekt og dimensjoner
Bredde	60 mm
Dybde	205 mm
Høyde	11 mm

Datainnpakking
Pakketype	Boks

Mobilt nettverk
4G standard	LTE
3G-standarder	UMTS

Emballasjeinnhold
Antall per pakke	1 stykker
Stativ medfølger	Ja

Logistikk data
Opprinnelsesland	China
