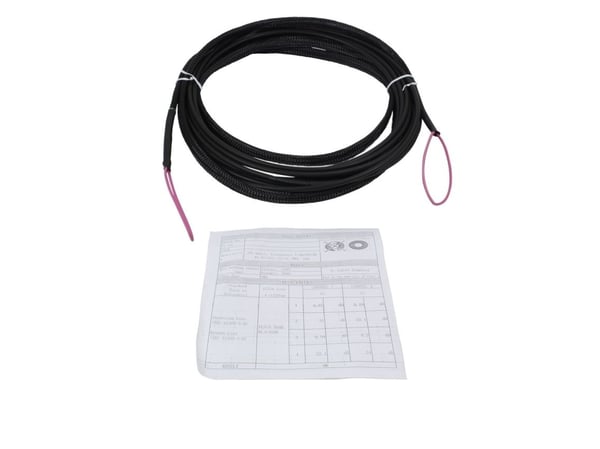

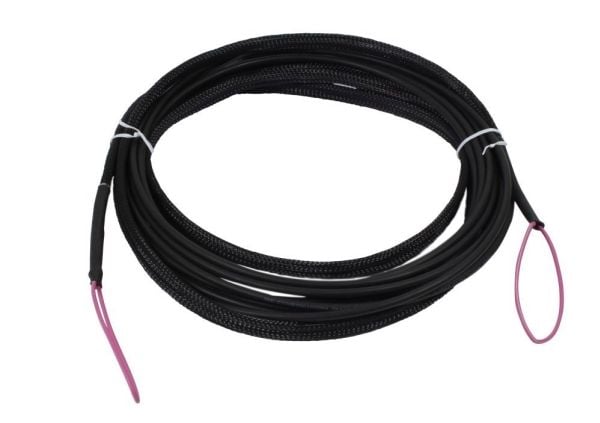

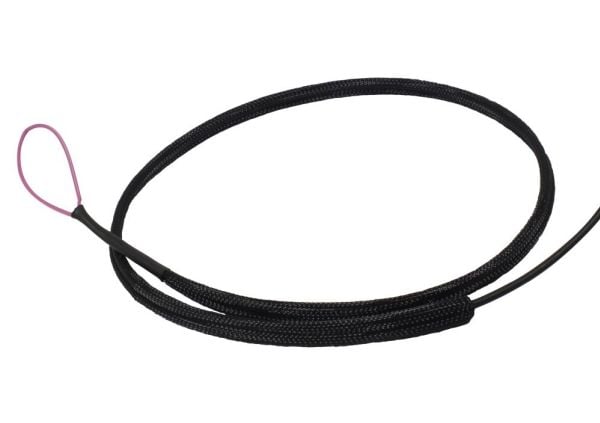

Name: LWLKabel Trunkkabel UDQZNBH 4G 50125 LCLC OM4 120m Trommel Synergy21
SKU: 8555250
Price: 2838 NOK
Availability: InStock

LWLKabel Trunkkabel UDQZNBH 4G 50125 LCLC OM4 120m Trommel Synergy21 | SKU: S217061 | Brand: SYNERGY 21 | EAN: 4038816115980<br>

color

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

Kabeltype

Produktfarge

Kjernediameter

Kledningsdiameter

Fibermodusstruktur

Støttede bølgelengder

Innsettingstap

Avkastning tap

Jakkemateriale

Sertifikater

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The distance from one side of the cable to the other

Egenskaper
Kabellengde	120 m
Fiberoptisk type	OM4
Tilkobling 1	4x LC
Tilkobling 2	4x LC
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Kabeltype	U-DQ(ZN) BH
Produktfarge	Rosa
Kjernediameter	50 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Multi-modus
Støttede bølgelengder	850 nm
Innsettingstap	0,3 dB
Avkastning tap	30 dB
Jakkemateriale	Low smoke zero halogen (LSZH)

Sertifikater
Samsvarssertifikat	RoHS, REACH

Miljømessige forhold
Driftstemperatur (T-T)	-40 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 70 °C

Vekt og dimensjoner
Kabeldiameter	6 mm
Kabelvekt	40,5 kg/km

Datainnpakking
Pakketype	Polybag

Emballasjeinnhold
Antall per pakke	1 stykker
