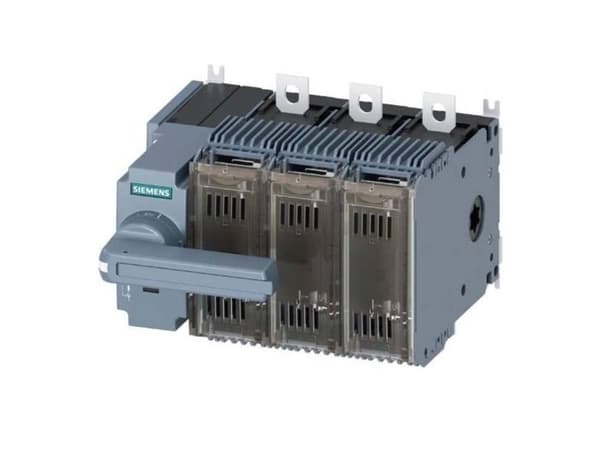

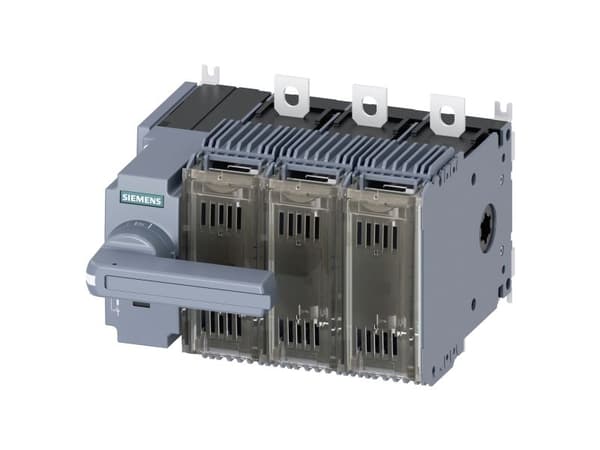

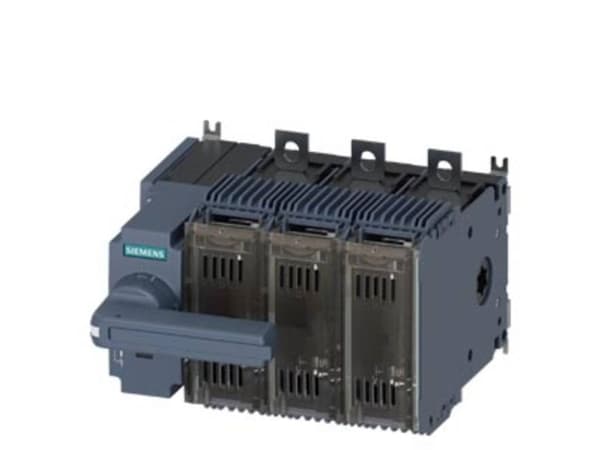

Name: Lastafbryder 3P 125A/SZ.00
Brand: Siemens
SKU: 20311945
Price: 4070 NOK
Availability: InStock

Lastafbryder 3P 125A/SZ.00 | SKU: 3KF2312-2LF11 | Brand: Siemens | EAN: 4001869536125<br>

Egenskaper

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Minimum ordreantall

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Type tilkobling for hovedkrets

Antall stenger inkludert

Betjeningselementtype

Nominell kontinuerlig strøm (Iu)

Integrert motordrift

Valgfri motordrift

Maksimal nominell driftsspenning (Ue AC)

Nødstoppversjon

Hovedbryterversjon

Sikkerhetsbryterversjon

Nominell driftseffekt (AC-23, 400 V)

Feilbeskyttelse

Nominell betinget kortslutningsstrøm (Iq)

Egnet for gulvmontering

Vekt og dimensjoner

Pakkevekt

The distance from the front to the back of the packaging.

Pakkedybde

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the top to the bottom of the packaging.

Lastafbryder 3P 125A/SZ.00

4 070 kr

4 070 kr

Produktbeskrivelse

Lastafbryder 3P 125A/SZ.00

4 070 kr

4 070 kr

Egenskaper
Internasjonal beskyttelses (IP)-kode	IP00
Minimum ordreantall	1 stykker

Tekniske detaljer
Samsvarssertifikat	CE, RoHS
Type tilkobling for hovedkrets	Andre
Antall stenger inkludert	3
Betjeningselementtype	Andre
Nominell kontinuerlig strøm (Iu)	125 A
Integrert motordrift	Nei
Valgfri motordrift	Nei
Maksimal nominell driftsspenning (Ue AC)	690 V
Nødstoppversjon	Nei
Hovedbryterversjon	Ja
Sikkerhetsbryterversjon	Ja
Nominell driftseffekt (AC-23, 400 V)	55000 kW
Feilbeskyttelse	Nei
Nominell betinget kortslutningsstrøm (Iq)	100 kA
Egnet for gulvmontering	Ja

Vekt og dimensjoner
Pakkevekt	3,16 kg
Pakkedybde	245 mm
Pakkebredde	290 mm
Pakkehøyde	175 mm
