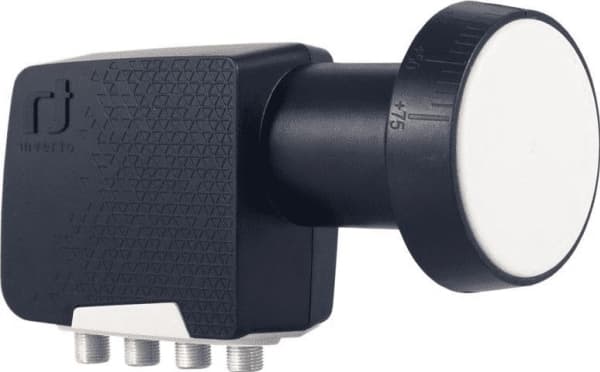

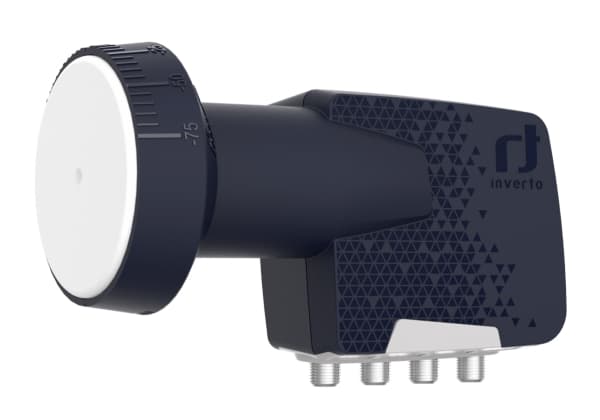

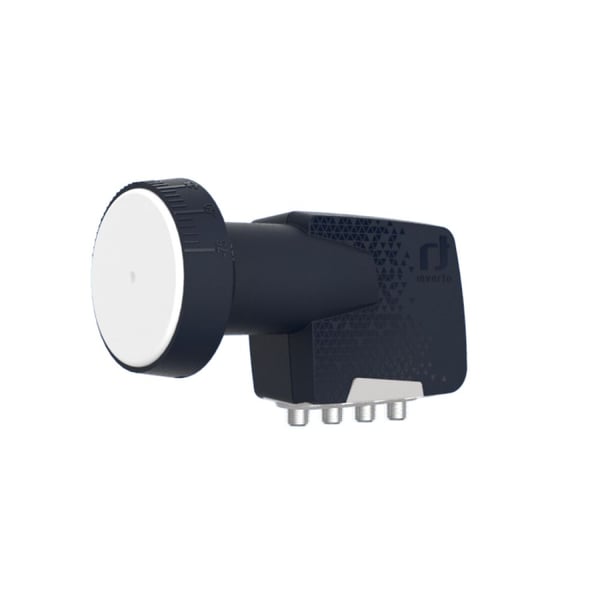

Name: IDLP-QDL410-PREMU-OPN PREMIUM QUAD UNIVERSAL LNB 40MM
SKU: 4953835
Price: 681 NOK
Availability: InStock

IDLP-QDL410-PREMU-OPN PREMIUM QUAD UNIVERSAL LNB 40MM | SKU: 5447 | Brand: Inverto | EAN: 5453002613283<br>

color

weight

Egenskaper

The span of signal frequencies that the device can receive and process, measured in gigahertz (e.g., 10.7 - 12.75 GHz).

Inngangsfrekvensområde

The frequency of the local oscillator used for the low band, measured in GHz.

LO-frekvens (lavbånd)

The frequency of the local oscillator used for the high frequency band, measured in GHz.

LO-frekvens (høybånd)

The span of frequencies that the device can emit, measured in megahertz (MHz) or gigahertz (GHz).

Utgangsfrekvensområde

The amount of amplification applied to the incoming signal, measured in decibels (e.g. 55 dB).

Konvertering gevinst

The measure of the amount of noise added by the device to the signal, expressed in decibels (dB).

Støyfigur

The ratio of the voltage standing wave pattern's maximum to minimum amplitude, indicating the efficiency of power transmission and the degree of impedance matching between the device and the transmission line.

Voltage Standing Wave Ratio (VSWR)

The internal resistance of the output stage, typically measured in ohms (Ω), which affects the signal transfer to a connected load.

Utgangsimpedans

The ability of the device to suppress unwanted image frequencies, measured in dBmW.

Avvisning av bilde

Produktfarge

The maximum frequency deviation caused by changes in the operating temperature, measured in MHz.

Temperaturdrift (±)

The maximum deviation of the gain across the specified frequency range, measured in dB.

Vinningsvariasjon (±)

The ability of the device to reject signals from the opposite polarization, measured in dB.

Krysspolarisasjonsisolasjon

The power level at which the output power is 1 dB lower than the ideal linear gain, measured in dBmW.

Kompresjonspunkt (1 dB)

Energihåndtering

The amount of electrical current consumed by the device during operation, measured in mA.

Strømforbruk

Vekt og dimensjoner

Weight of the product without packaging (net weight). If possible

Vekt

Datainnpakking

Antall

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

IDLP-QDL410-PREMU-OPN PREMIUM QUAD UNIVERSAL LNB 40MM

681 kr

681 kr

Early Black Friday er i gang: se alle deals

Produktbeskrivelse

IDLP-QDL410-PREMU-OPN PREMIUM QUAD UNIVERSAL LNB 40MM

681 kr

681 kr

Early Black Friday er i gang: se alle deals

Egenskaper
Inngangsfrekvensområde	10,7 - 12,75 GHz
LO-frekvens (lavbånd)	9,75 GHz
LO-frekvens (høybånd)	10,6 GHz
Utgangsfrekvensområde	950 - 2150 MHz
Konvertering gevinst	55 dB
Støyfigur	0,2 dB
Voltage Standing Wave Ratio (VSWR)	2,5 : 1
Utgangsimpedans	75 Ω
Avvisning av bilde	40 dBmW
Produktfarge	Svart, Hvit
Temperaturdrift (±)	1 MHz
Vinningsvariasjon (±)	0,6 dB
Krysspolarisasjonsisolasjon	22 dB
Kompresjonspunkt (1 dB)	0 dBmW

Energihåndtering
Strømforbruk	120 mA

Vekt og dimensjoner
Vekt	221 g

Datainnpakking
Antall	1
Pakkebredde	155 mm
Pakkedybde	91 mm
Pakkehøyde	76 mm
Pakkevekt	281 g

Miljømessige forhold
Driftstemperatur (T-T)	-35 - 60 °C
