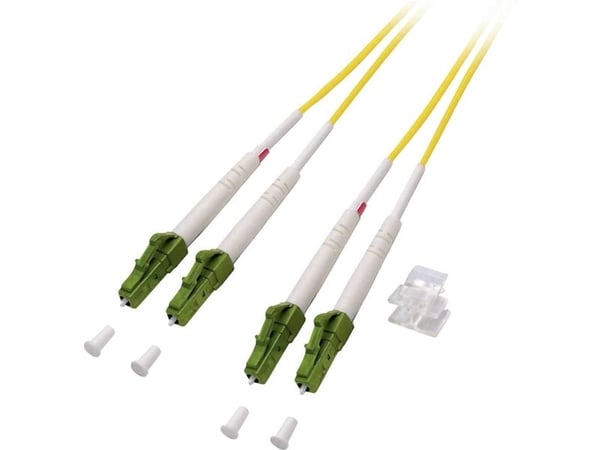

Name: EFB Elektronik O0381.10, 10 m, OS2, 2x LC, 2x LC
SKU: 4233760
Price: 315 NOK
Availability: InStock

EFB Elektronik O0381.10, 10 m, OS2, 2x LC, 2x LC | SKU: O0381.10 | Brand: EFB Elektronik | EAN: 4049759056254<br>

color

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

Produktfarge

A full-duplex system allows communication in both directions

Full tosidig

Kjernediameter

Kledningsdiameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibermodusstruktur

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Innsettingstap

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Avkastning tap

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

Sertifikater

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The distance from one side of the cable to the other

Kabeldiameter

The total mass of the cable per unit of length, measured in kg/km.

Kabelvekt

Logistikk data

The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.

EFB Elektronik O0381.10, 10 m, OS2, 2x LC, 2x LC

315 kr

315 kr

Early Black Friday er i gang: se alle deals

Produktbeskrivelse

EFB Elektronik O0381.10, 10 m, OS2, 2x LC, 2x LC

315 kr

315 kr

Early Black Friday er i gang: se alle deals

Egenskaper
Kabellengde	10 m
Fiberoptisk type	OS2
Tilkobling 1	2x LC
Tilkobling 2	2x LC
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Produktfarge	Gult
Full tosidig	Ja
Kjernediameter	9 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Enkeltmodus
Innsettingstap	0,3 dB
Avkastning tap	60 dB
Jakkemateriale	Low smoke zero halogen (LSZH)

Sertifikater
Samsvarssertifikat	RoHS
Sertifisering	ISO / IEC11801, IEC-60754-2, IEC-60332-1, IEC-61034, IEC-61753-1, IEC 61753-222-2, 50265-2-1

Miljømessige forhold
Driftstemperatur (T-T)	-20 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-20 - 85 °C

Vekt og dimensjoner
Kabeldiameter	3 mm
Kabelvekt	3,2 kg/km

Logistikk data
Harmonisert system (HS)-kode	85447000
