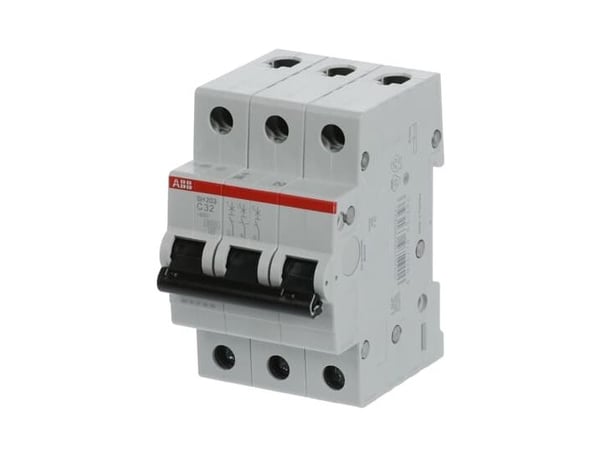

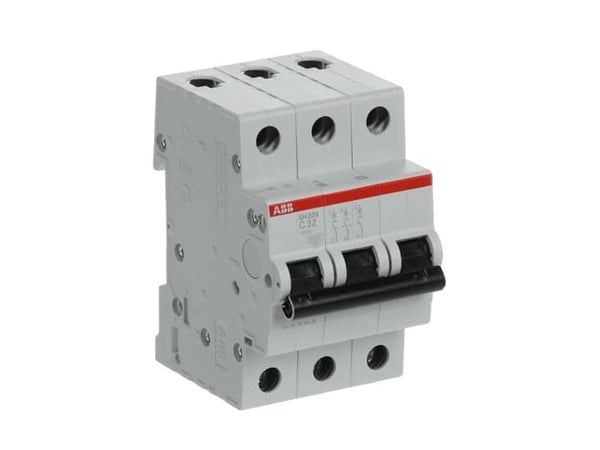

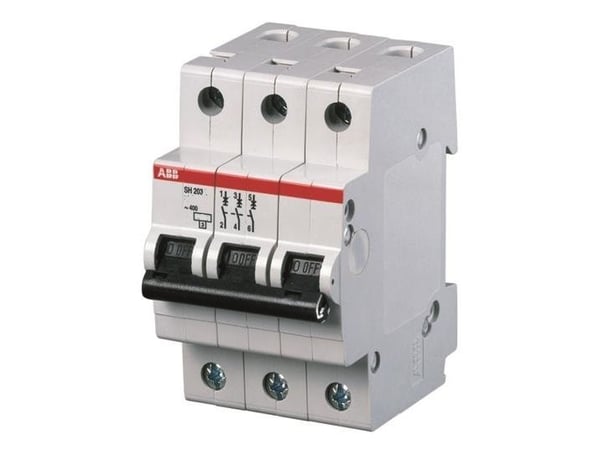

Name: ABB 2CDS213001R0324, Miniatyr-automatsikring, IP20, 440 V AC
SKU: 5263607
Price: 270 NOK
Availability: InStock

ABB 2CDS213001R0324, Miniatyr-automatsikring, IP20, 440 V AC | SKU: 2CDS213001R0324 | Brand: ABB | EAN: 4016779631396<br>

color

weight

Energihåndtering

The voltage (V) which is required to power the product.

Inngangsspenning

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

Nominell linjestrøm

Nominell spenning

Totalt strømtap

Dielektrisk styrke

Egenskaper

Kretsbrytertype

Turkurvetype

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

A fuse is a safety device consisting of a strip of wire that melts and breaks an electric circuit if the current exceeds a safe level.

Fuse type

Beskyttelsesklasse

The colour e.g. red, blue, green, black, white.

Produktfarge

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

ABB 2CDS213001R0324, Miniatyr-automatsikring, IP20, 440 V AC

270 kr

270 kr

Produktbeskrivelse

ABB 2CDS213001R0324, Miniatyr-automatsikring, IP20, 440 V AC

270 kr

270 kr

Energihåndtering
Inngangsspenning	440 V AC
Inngangsfrekvens	50/60 Hz
Nominell linjestrøm	32 A
Nominell spenning	1400 V
Totalt strømtap	11,1 W
Dielektrisk styrke	2000 V

Egenskaper
Kretsbrytertype	Miniatyr-automatsikring
Turkurvetype	Type C
Antall poler	3
Internasjonal beskyttelses (IP)-kode	IP20
Fuse type	Termisk
Beskyttelsesklasse	III
Produktfarge	Grå
Sertifisering	IEC/EN 60898-1

Miljømessige forhold
Driftstemperatur (T-T)	-25 - 55 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 70 °C

Vekt og dimensjoner
Bredde	52,5 mm
Dybde	69 mm
Høyde	85 mm
Vekt	375 g
