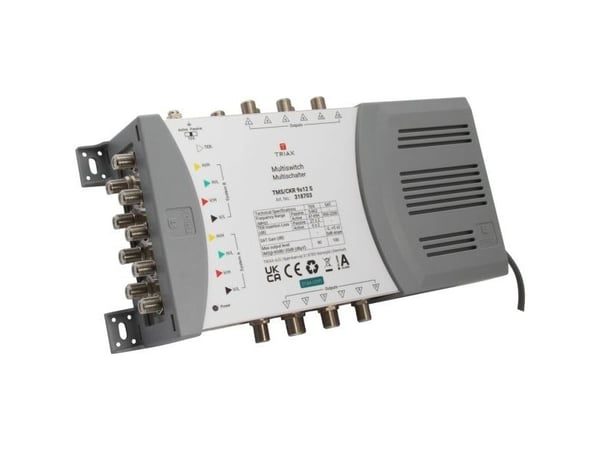

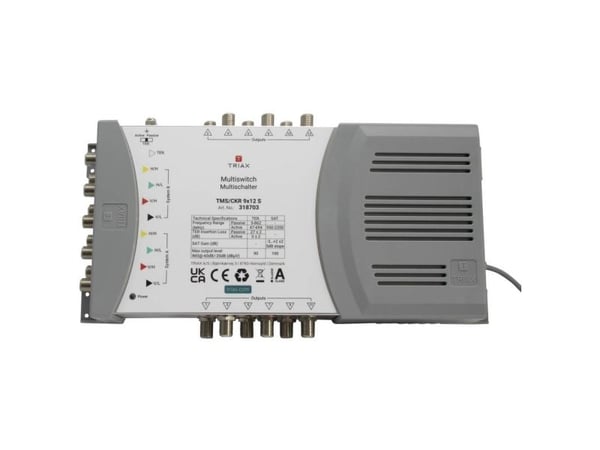

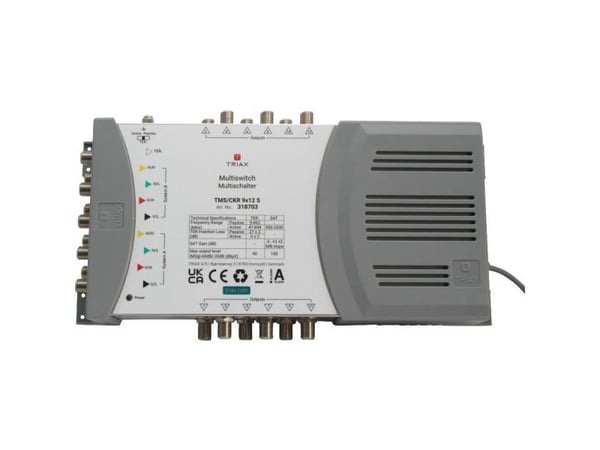

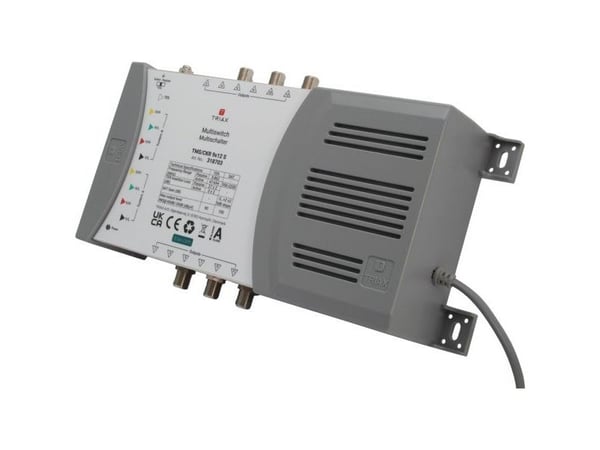

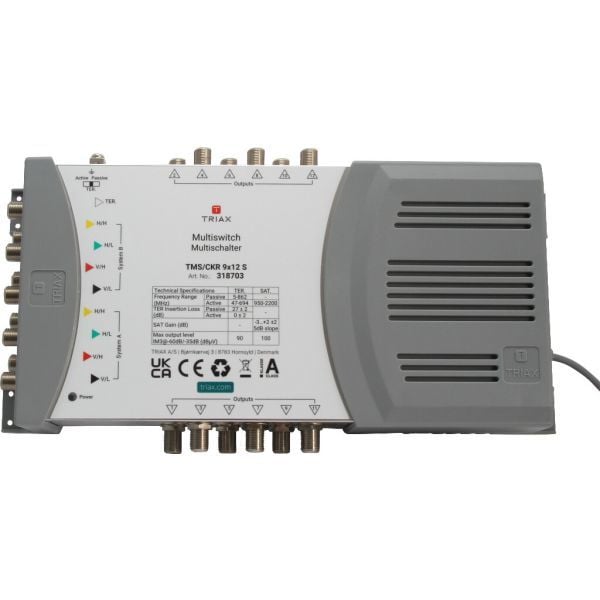

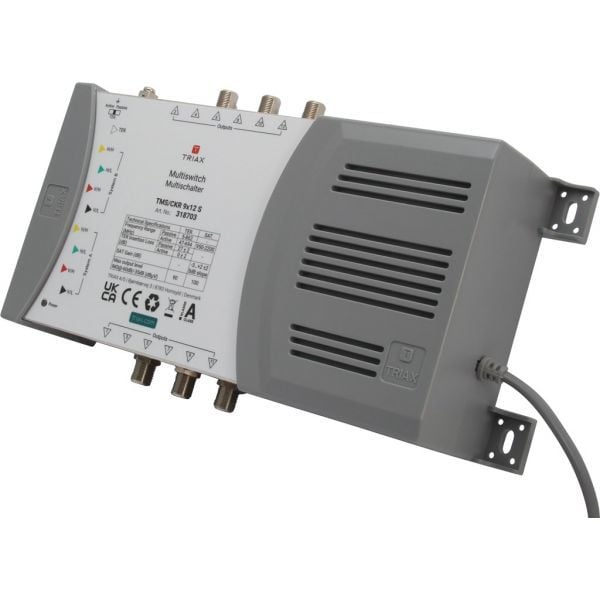

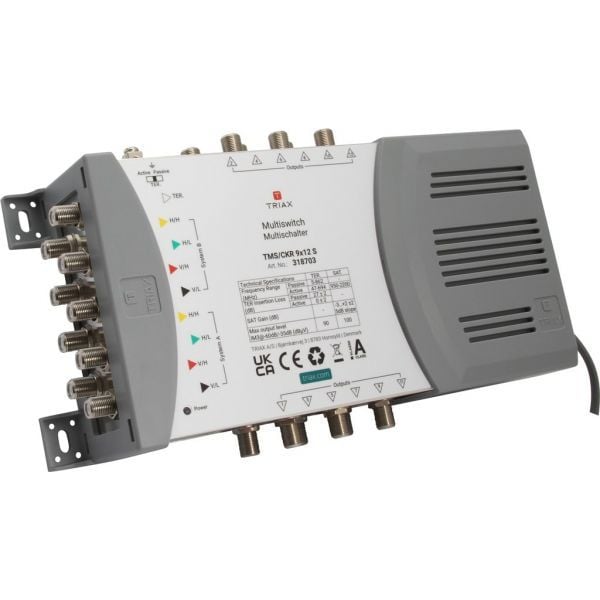

Name: Triax TMS/CKR 9x12 S, 5 innganger, 12 utganger, 5 - 862 MHz, 950 - 2200 MHz, 10 dB, 10 dB
SKU: 8613291
Price: 3099 NOK
Availability: InStock

Triax TMS/CKR 9x12 S, 5 innganger, 12 utganger, 5 - 862 MHz, 950 - 2200 MHz, 10 dB, 10 dB | SKU: 318703 | Brand: Triax | EAN: 5702663187030<br>

weight

Egenskaper

The total number of available input ports or channels on the device, measured in inputs.

Antall inputs

The quantity of outputs, which is the data, energy or other things produced by the product.

Antall output

The range of frequencies supported for terrestrial input signals, measured in MHz.

Inngangs frekvensområdet (bakkenett)

The range of frequencies supported for the satellite signal output, measured in MHz.

Utgangs frekvensområde (satellitt)

The amount of signal strength lost as it passes through the device, measured in dB.

Gjennom tap (satellitt)

The amount of signal strength lost as the terrestrial signal passes through the device, measured in dB.

Gjennom tap (bakkenett)

The range of signal amplification provided by the device, typically measured in decibels (dB).

Konverterings gevinst

The total resistance to alternating current flow at the input terminals, measured in ohms.

Inngangsimpedans

The specific standard of the radio frequency interface used for signal connection (e.g. F or IEC).

RF-kontakt type

Energihåndtering

The voltage (V) which is required to power the product.

Inngangsspenning

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vekt

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Triax TMS/CKR 9x12 S, 5 innganger, 12 utganger, 5 - 862 MHz, 950 - 2200 MHz, 10 dB, 10 dB

3 099 kr

3 099 kr

Produktbeskrivelse

Triax TMS/CKR 9x12 S, 5 innganger, 12 utganger, 5 - 862 MHz, 950 - 2200 MHz, 10 dB, 10 dB

3 099 kr

3 099 kr

Egenskaper
Antall inputs	5 innganger
Antall output	12 utganger
Inngangs frekvensområdet (bakkenett)	5 - 862 MHz
Utgangs frekvensområde (satellitt)	950 - 2200 MHz
Gjennom tap (satellitt)	10 dB
Gjennom tap (bakkenett)	10 dB
Konverterings gevinst	-3 - 2 dB
Inngangsimpedans	75 Ω
RF-kontakt type	F

Energihåndtering
Inngangsspenning	180 - 264 V

Miljømessige forhold
Driftstemperatur (T-T)	-20 - 55 °C

Vekt og dimensjoner
Bredde	140 mm
Dybde	65 mm
Høyde	270 mm
Vekt	825 g
Pakkebredde	330 mm
Pakkedybde	150 mm
Pakkehøyde	70 mm
Pakkevekt	990 g
