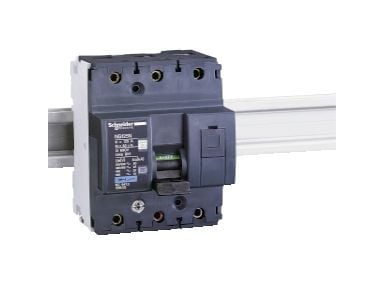

Name: Schneider Electric automatsikring 3P C 50A AC NG125N (18638)
SKU: 4946913
Price: 2038 NOK
Availability: InStock

Schneider Electric automatsikring 3P C 50A AC NG125N (18638) | SKU: 18638 | Brand: SCHNEIDER ELECTRIC | EAN: 3303430186380<br>

color

weight

Energihåndtering

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nominell linjestrøm

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nominell spenning

The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).

AC-inngangsfrekvens

Egenskaper

Modell/Type

The maximum fault current that the device can safely interrupt without sustaining permanent damage, measured in A.

Bryteevne

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Forurensningsgrad

The colour e.g. red, blue, green, black, white.

Produktfarge

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.

Relativ luftfuktighet under drift (H-H)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Schneider Electric automatsikring 3P C 50A AC NG125N (18638)

2 038 kr

2 038 kr

Produktbeskrivelse

Schneider Electric automatsikring 3P C 50A AC NG125N (18638)

2 038 kr

2 038 kr

Energihåndtering
Nominell linjestrøm	50 A
Nominell spenning	500 V
AC-inngangsfrekvens	50 - 60 Hz

Egenskaper
Modell/Type	Type C
Bryteevne	50000 A
Antall poler	3
Internasjonal beskyttelses (IP)-kode	IP20
Forurensningsgrad	3
Produktfarge	Svart
Sertifisering	EN/IEC 60947-2

Miljømessige forhold
Driftstemperatur (T-T)	-30 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 70 °C
Relativ luftfuktighet under drift (H-H)	0 - 95%

Vekt og dimensjoner
Bredde	81 mm
Dybde	81 mm
Høyde	103 mm
Vekt	720 g
