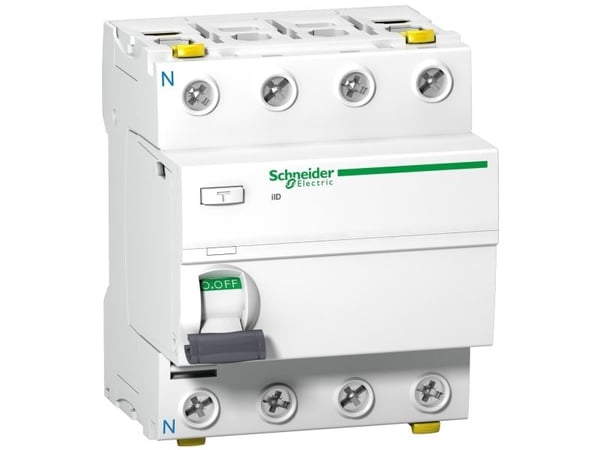

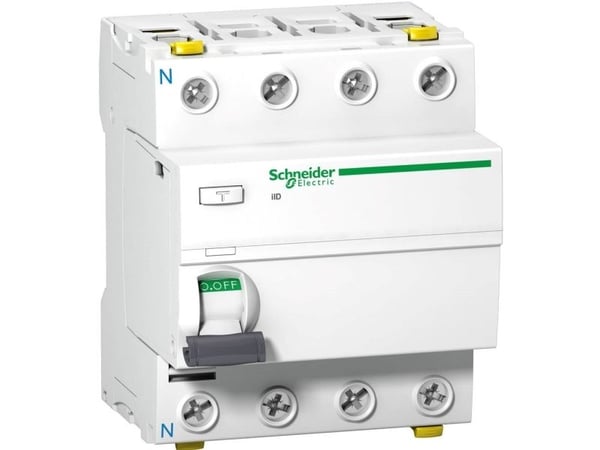

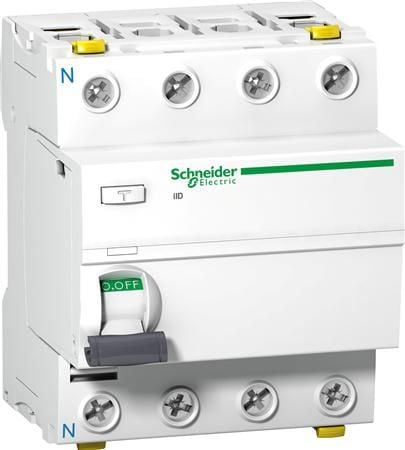

Name: Schneider Electric A9Z21463, Reststrømenhet, Type A, 1500 A, IP20, 380 - 415 V
SKU: 1336825
Price: 476 NOK
Availability: InStock

Schneider Electric A9Z21463, Reststrømenhet, Type A, 1500 A, IP20, 380 - 415 V | SKU: A9Z21463 | Brand: SCHNEIDER ELECTRIC | EAN: 3606480443251<br>

color

weight

Energihåndtering

The voltage (V) which is required to power the product.

Inngangsspenning

Nominell linjestrøm

Nominell spenning

Egenskaper

Kretsbrytertype

Modell/Type

Bryteevne

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Forurensningsgrad

The colour e.g. red, blue, green, black, white.

Produktfarge

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vekt

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Green Friday feirer 10 år

Schneider Electric A9Z21463, Reststrømenhet, Type A, 1500 A, IP20, 380 - 415 V

476 kr

476 kr

Produktbeskrivelse

Schneider Electric A9Z21463, Reststrømenhet, Type A, 1500 A, IP20, 380 - 415 V

476 kr

476 kr

Energihåndtering
Inngangsspenning	380 - 415 V
Nominell linjestrøm	63 A
Nominell spenning	380 V

Egenskaper
Kretsbrytertype	Reststrømenhet
Modell/Type	Type A
Bryteevne	1500 A
Antall poler	4P
Internasjonal beskyttelses (IP)-kode	IP20
Forurensningsgrad	3
Produktfarge	Hvit
Sertifisering	EN/IEC 61008-1

Miljømessige forhold
Driftstemperatur (T-T)	-25 - 60 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 85 °C

Vekt og dimensjoner
Bredde	72 mm
Dybde	73 mm
Høyde	91 mm
Vekt	370 g

Tekniske detaljer
Samsvarssertifikat	RoHS
