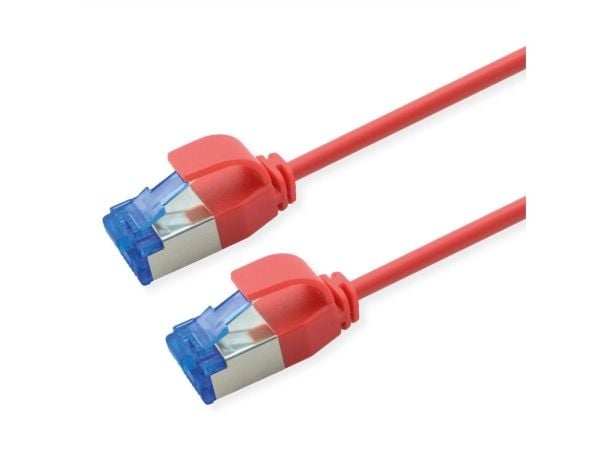

Name: ROLINE 21.15.4308-100, 0,3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Röd
SKU: 25198421
Price: 171 NOK
Availability: InStock

ROLINE 21.15.4308-100, 0,3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Röd | SKU: 21.15.4308 | Brand: ROLINE | EAN: 7630049637924<br>

color

Egenskaper

Produktfarge

Kabellengde

Kabelstandard

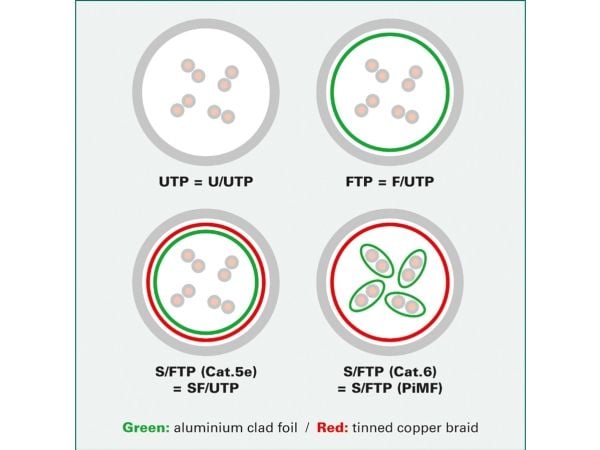

Kabelskjerming

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

The physical shape or orientation of the first connector, such as whether it is angled, foldable, or rectangular.

Tilkobling 1 formfaktor

The physical shape or orientation of the second connector, such as whether it is angled, foldable, or rectangular.

Tilkobling 2 formfaktor

What the connector contacts are covered with (layer on top).

Kontaktplettering

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

Specifies the construction or material of the internal electrical wire, such as whether it consists of a single solid core or multiple stranded filaments (e.g., Oxygen-Free Copper).

Ledertype

The diameter of the conductor based on the American Wire Gauge standard (e.g. 12).

AWG-ledningsstørrelse

The smallest allowable curve the cable can be bent to without risking damage to the internal conductors, measured in millimetres.

Bøyeradius (min)

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The distance across the widest part of the circular cross-section of the product, measured in mm.

ROLINE 21.15.4308-100, 0,3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Röd

171 kr

171 kr

Produktbeskrivelse

ROLINE 21.15.4308-100, 0,3 m, Cat6a, S/FTP (S-STP), RJ-45, RJ-45, Röd

171 kr

171 kr

Egenskaper
Produktfarge	Rød
Kabellengde	0,3 m
Kabelstandard	Cat6a
Kabelskjerming	S/FTP (S-STP)
Tilkobling 1	RJ-45
Tilkobling 2	RJ-45
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Tilkobling 1 formfaktor	Rett
Tilkobling 2 formfaktor	Rett
Kontaktplettering	Gull
Jakkemateriale	Low smoke zero halogen (LSZH), Termoplastisk elastomer (TPE)
Ledertype	Strandet
AWG-ledningsstørrelse	28
Bøyeradius (min)	2,7 cm

Miljømessige forhold
Driftstemperatur (T-T)	-10 - 60 °C
Oppbevaringstemperaturomåde (Celsius)	-20 - 75 °C

Vekt og dimensjoner
Ytre diameter	3,8 mm
