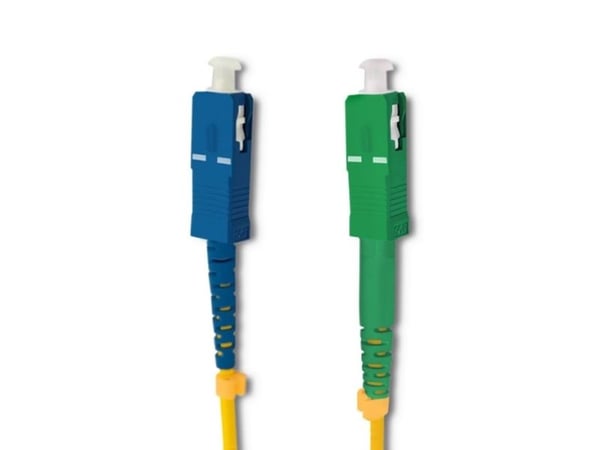

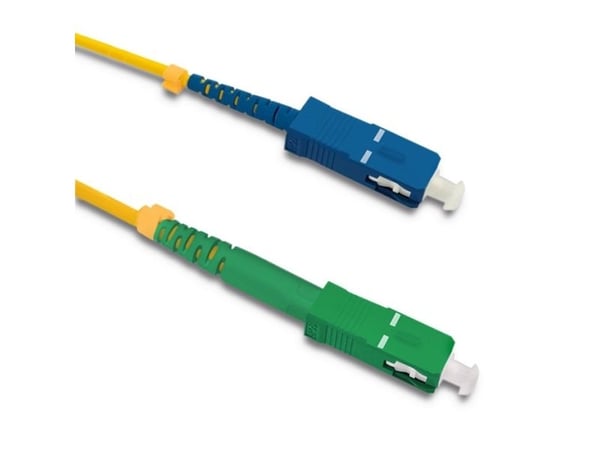

Name: Qoltec 54293 fiberpatchkabel SC/APC-SC/UPC 7 m G652D, gul
SKU: 3553976
Price: 218 NOK
Availability: InStock

Qoltec 54293 fiberpatchkabel SC/APC-SC/UPC 7 m G652D, gul | SKU: 54293 | Brand: Qoltec | EAN: 5901878542935<br>

color

weight

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

The specific geometry and finish of the fiber optic connector end-face to minimize signal loss, such as APC or UPC.

Etterbehandlingstype på kontakt

Kabeltype

Produktfarge

A full-duplex system allows communication in both directions

Full tosidig

Kjernediameter

Kledningsdiameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibermodusstruktur

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Innsettingstap

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Avkastning tap

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

Vekt og dimensjoner

The distance from one side of the cable to the other

Kabeldiameter

Weight of the product without packaging (net weight). If possible

Vekt

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

Pakketype

Emballasjeinnhold

The number of individual units contained within a single sales package, measured in pc(s).

Qoltec 54293 fiberpatchkabel SC/APC-SC/UPC 7 m G652D, gul

218 kr

218 kr

Produktbeskrivelse

Qoltec 54293 fiberpatchkabel SC/APC-SC/UPC 7 m G652D, gul

218 kr

218 kr

Egenskaper
Kabellengde	7 m
Fiberoptisk type	G.652D
Tilkobling 1	SC
Tilkobling 2	SC
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Etterbehandlingstype på kontakt	APC/UPC
Kabeltype	SC/APC
Produktfarge	Gult
Full tosidig	Nei
Kjernediameter	9 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Enkeltmodus
Innsettingstap	0,3 dB
Avkastning tap	60 dB
Jakkemateriale	Low smoke zero halogen (LSZH)

Vekt og dimensjoner
Kabeldiameter	3 mm
Vekt	440 g

Datainnpakking
Pakkebredde	209 mm
Pakkedybde	257 mm
Pakkehøyde	10 mm
Pakkevekt	550 g
Pakketype	Polybag

Emballasjeinnhold
Antall per pakke	1 stykker
