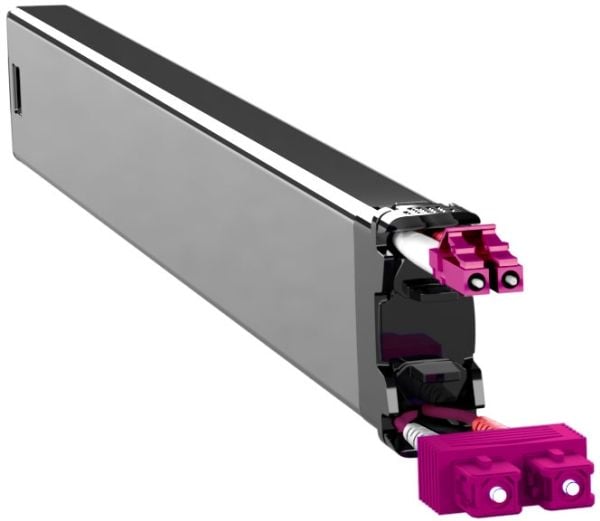

Name: PATCHBOX C36MMAOM412X1E, 0,8 m, OFC, OM4, LC, SC
SKU: 6493615
Price: 510 NOK
Availability: InStock

PATCHBOX C36MMAOM412X1E, 0,8 m, OFC, OM4, LC, SC | SKU: C36MMAOM412X1E | Brand: PATCHBOX | EAN: 0311778770188<br>

color

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

The specific geometry and finish of the fiber optic connector end-face to minimize signal loss, such as APC or UPC.

Etterbehandlingstype på kontakt

Kabeltype

Produktfarge

A full-duplex system allows communication in both directions

Full tosidig

Kjernediameter

Kledningsdiameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibermodusstruktur

The specific light frequencies, measured in nanometres, that the product is designed to transmit or receive (e.g. 1310).

Støttede bølgelengder

The maximum data transfer rate supported by the network port, expressed in gigabits per second (e.g., 10 Gigabit Ethernet).

Ethernet-grensesnittype

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

Dataoverføringshastighet

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Innsettingstap

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

The substance used to manufacture the housing or contacts (e.g. Aluminium, Brass, or ABS).

Kontaktmateriale

Sertifikater

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

PATCHBOX C36MMAOM412X1E, 0,8 m, OFC, OM4, LC, SC

510 kr

510 kr

Produktbeskrivelse

PATCHBOX C36MMAOM412X1E, 0,8 m, OFC, OM4, LC, SC

510 kr

510 kr

Egenskaper
Kabellengde	0,8 m
Fiberoptisk type	OM4
Tilkobling 1	LC
Tilkobling 2	SC
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Etterbehandlingstype på kontakt	PC
Kabeltype	OFC
Produktfarge	Fiolett
Full tosidig	Ja
Kjernediameter	50 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Multi-modus
Støttede bølgelengder	850 nm
Ethernet-grensesnittype	10 Gigabit Ethernet, 40 Gigabit Ethernet
Dataoverføringshastighet	100 Gbit/s
Innsettingstap	0,1 dB
Jakkemateriale	Low smoke zero halogen (LSZH)
Kontaktmateriale	Keramisk

Sertifikater
Sertifisering	CE

Logistikk data
Opprinnelsesland	Sulten
