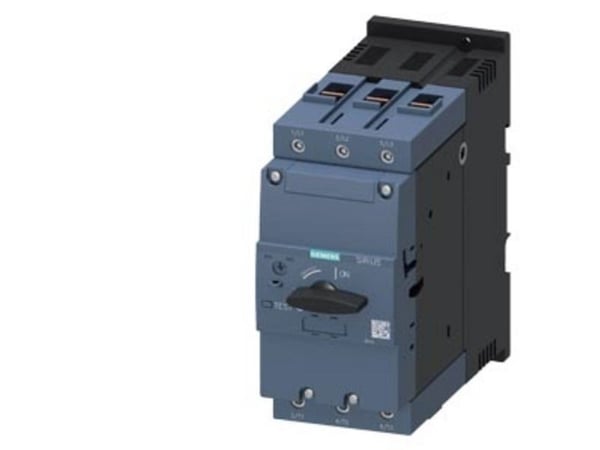

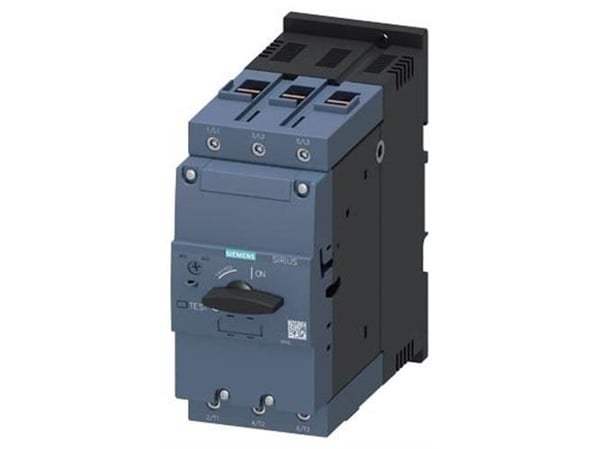

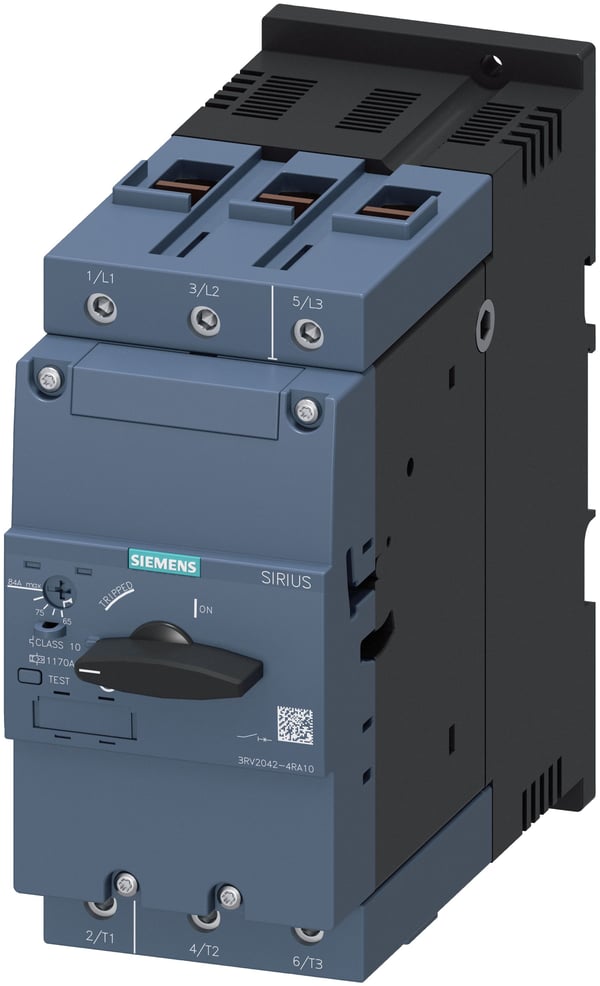

Name: Motorværn håndbetj 3RV2 65-80A
Brand: Siemens
SKU: 4689579
Price: 15962 NOK
Availability: InStock

Motorværn håndbetj 3RV2 65-80A | SKU: 3RV20424RA10 | Brand: Siemens | EAN: 4047621014265<br>

Energihåndtering

The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.

Strøm (maks.)

The amount of electrical energy dissipated as heat during operation, measured in W.

Totalt strømtap

Egenskaper

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Vekt og dimensjoner

The measurement of the product from head to foot or from base to top.

Høyde

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

The way in which the product is constructed.

Kontstruksjonstype

The method used to secure the primary electrical conductors to the device, such as via a screw connection or a plug-in connection.

Type tilkobling for hovedkrets

The type of mechanism used to operate the device, such as an actuating rod, key, or rotary handle.

Betjeningselementtype

The maximum current that the device can carry continuously under specified conditions without exceeding temperature limits, measured in amperes.

Nominell kontinuerlig strøm (Iu)

The specific current threshold at which the device will trigger a release to protect against electrical overload.

Innstilling av overbelastningsutløserstrøm

Indicates whether the device includes a built-in mechanism to automatically trip the circuit when the voltage drops below a specific threshold.

Integrert underspenningsutløser

The adjustable range for the current threshold at which the device triggers an immediate trip to protect against short circuits.

Innstillingsområde for momentan kortslutningsutløser

The maximum power the device can switch under AC-3 load conditions at 400V, measured in kilowatts (e.g. 11 kW).

Nominell driftseffekt (AC-3, 400 V)

The maximum voltage at which the device is designed to operate safely and continuously.

Nominell driftsspenning

The method used by the device to interrupt the electrical circuit during a fault, such as a magnetic trip (e.g. Magnetic).

Utkoblingsteknikk

Indicates whether the device features a mechanism to automatically disconnect the circuit if an excessive current causes overheating.

Termisk overbelastningsbeskyttelse

Indicates whether the device can detect and respond to the loss of one or more phases in a power supply system.

Følsom for fasefeil

Indicates whether the device includes a built-in auxiliary switch for monitoring the contact position.

Integrert hjelpekontakt

The maximum fault current that the device can safely interrupt at 400V AC without sustaining damage.

Nominell kortslutningsbryteevne (Icu, 400 V AC)

The maximum power load the device can safely handle during normal operation under AC-3 switching conditions at 230V.

Nominell driftseffekt (AC-3, 230 V)

Indicates whether the product is supplied with a battery.

Batteri inkludert

The highest number of units that can be purchased in a single order, measured in pc(s).

Maksimalt bestillingsantall

Logistikk data

The smallest number of units that can be purchased in a single order, measured in pc(s).

Motorværn håndbetj 3RV2 65-80A

15 962 kr

15 962 kr

Produktbeskrivelse

Motorværn håndbetj 3RV2 65-80A

15 962 kr

15 962 kr

Energihåndtering
Strøm (maks.)	84 A
Totalt strømtap	34 W

Egenskaper
Antall poler	3P
Internasjonal beskyttelses (IP)-kode	IP20

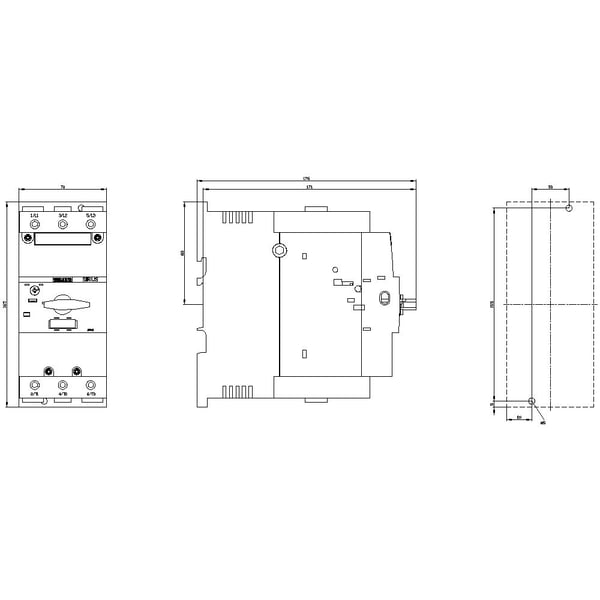

Vekt og dimensjoner
Høyde	165 mm

Datainnpakking
Pakkebredde	78 mm
Pakkedybde	172 mm
Pakkehøyde	193 mm
Pakkevekt	2,26 kg

Tekniske detaljer
Samsvarssertifikat	CE, RoHS, REACH
Kontstruksjonstype	Fixed built-in technique
Type tilkobling for hovedkrets	Screw connection
Betjeningselementtype	Andre
Nominell kontinuerlig strøm (Iu)	84 A
Innstilling av overbelastningsutløserstrøm	65 - 84 A
Integrert underspenningsutløser	Nei
Innstillingsområde for momentan kortslutningsutløser	1170
Nominell driftseffekt (AC-3, 400 V)	45 kW
Nominell driftsspenning	690 V
Utkoblingsteknikk	Magnetisk
Termisk overbelastningsbeskyttelse	Ja
Følsom for fasefeil	Ja
Integrert hjelpekontakt	Nei
Nominell kortslutningsbryteevne (Icu, 400 V AC)	100 kA
Nominell driftseffekt (AC-3, 230 V)	22 kW
Batteri inkludert	Nei
Maksimalt bestillingsantall	1 stykker

Logistikk data
Minimum ordreantall	1 stykker
