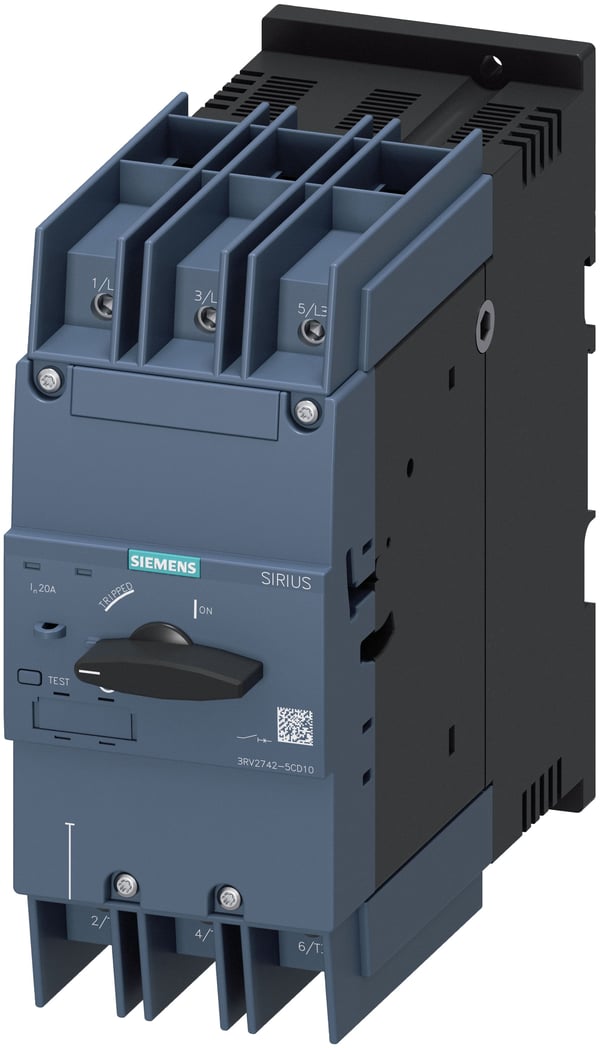

Name: Motorværn 3RV2 S3 UL489 20A system
Brand: Siemens
SKU: 4689735
Price: 5554 NOK
Availability: InStock

Motorværn 3RV2 S3 UL489 20A system | SKU: 3RV27425CD10 | Brand: Siemens | EAN: 4047621014463<br>

Energihåndtering

Totalt strømtap

Egenskaper

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Vekt og dimensjoner

The measurement of the product from head to foot or from base to top.

Høyde

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

The way in which the product is constructed.

Energihåndtering
Totalt strømtap	14 W

Egenskaper
Antall poler	3P
Internasjonal beskyttelses (IP)-kode	IP20

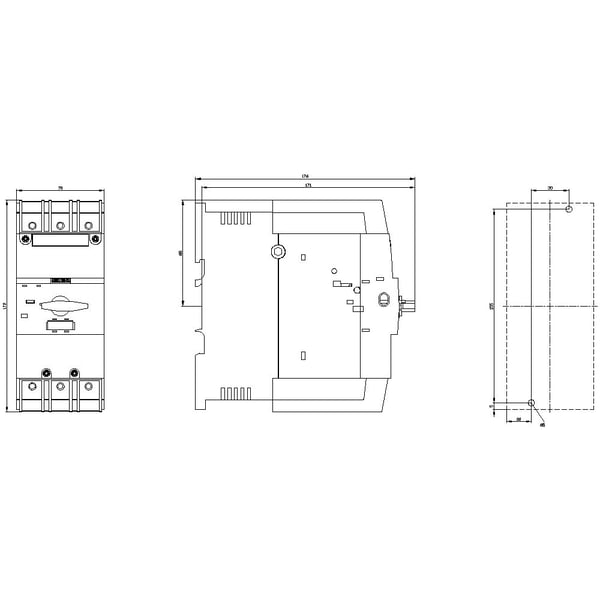

Vekt og dimensjoner
Høyde	170 mm

Datainnpakking
Pakkebredde	177 mm
Pakkedybde	191 mm
Pakkehøyde	78 mm
Pakkevekt	2,25 kg

Tekniske detaljer
Samsvarssertifikat	CE, RoHS, REACH
Kontstruksjonstype	Fixed built-in technique
Type tilkobling for hovedkrets	Screw connection
Betjeningselementtype	Andre
Nominell kontinuerlig strøm (Iu)	20 A
Integrert underspenningsutløser	Nei
Innstillingsområde for momentan kortslutningsutløser	260
Nominell driftsspenning	600 V
Utkoblingsteknikk	Magnetisk
Termisk overbelastningsbeskyttelse	Ja
Følsom for fasefeil	Nei
Integrert hjelpekontakt	Nei
Nominell kortslutningsbryteevne (Icu, 400 V AC)	100 kA
Batteri inkludert	Nei
Maksimalt bestillingsantall	1 stykker

Logistikk data
Minimum ordreantall	1 stykker
