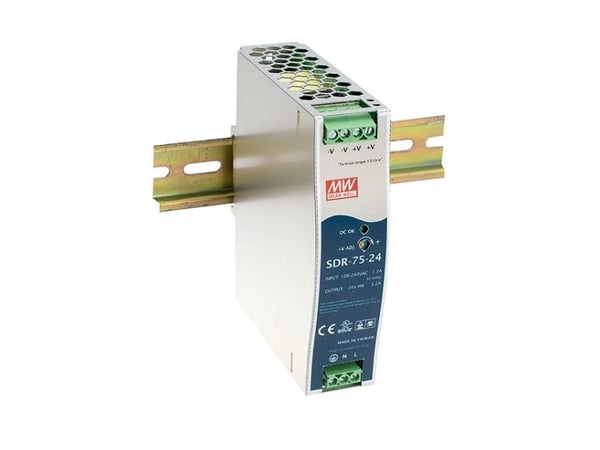

Name: MEAN WELL strømforsyning nettadapter 76 W metallisk (SDR-75-12)
SKU: 3440311
Price: 583 NOK
Availability: InStock

MEAN WELL strømforsyning nettadapter 76 W metallisk (SDR-75-12) | SKU: SDR-75-12 | Brand: Mean Well | EAN: 4711287422329<br>

color

weight

Energihåndtering

The total power that is needed by the device

Total strøm

This is the maximum power required by the device or peak music power.

Toppeffekt

The voltage of the AC electricity that is inputted into the product.

AC-inngangsspenning

The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).

AC-inngangsfrekvens

The duration in milliseconds that the power supply can maintain a stable output voltage during a brief loss of input power.

Holdtid

The percentage of input energy that is converted into useful work or output, rather than being lost as heat or waste (e.g. 92%).

Effektivitet

Ytelse

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

Gjennomsnittstid mellom feil (MTBF)

Design

Produktfarge

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.

Relativ luftfuktighet under drift (H-H)

Safety regulation & standards

List of regulatory safety standards for all countries in which this product has been certified.

Sikkerhet

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

Weight of the product without packaging (net weight). If possible

Vekt

Andre funksjoner

The time required for a signal or voltage to transition from a specified low value to a specified high value, measured in milliseconds or microseconds.

MEAN WELL strømforsyning nettadapter 76 W metallisk (SDR-75-12)

583 kr

583 kr

Produktbeskrivelse

MEAN WELL strømforsyning nettadapter 76 W metallisk (SDR-75-12)

583 kr

583 kr

Energihåndtering
Total strøm	76 W
Toppeffekt	112,5 W
AC-inngangsspenning	88 - 264 V
AC-inngangsfrekvens	47 - 63 Hz
Holdtid	80 ms
Effektivitet	88%

Ytelse
Gjennomsnittstid mellom feil (MTBF)	481900 timer

Design
Produktfarge	Metallisk

Miljømessige forhold
Driftstemperatur (T-T)	-30 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 85 °C
Relativ luftfuktighet under drift (H-H)	20 - 95%

Safety regulation & standards
Sikkerhet	EN60950-1, UL508

Vekt og dimensjoner
Bredde	32 mm
Dybde	102 mm
Vekt	510 g

Andre funksjoner
Rensetid	60 ms
