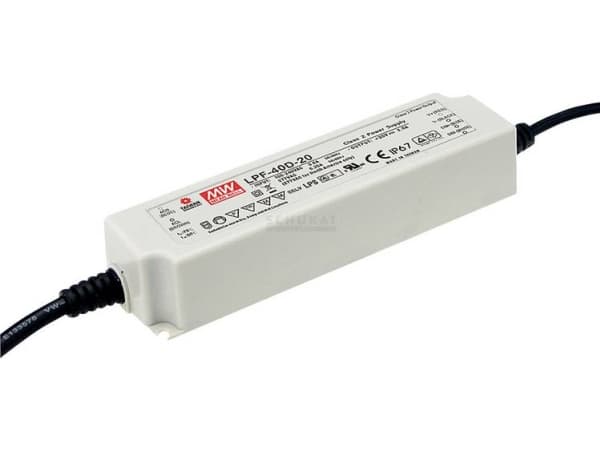

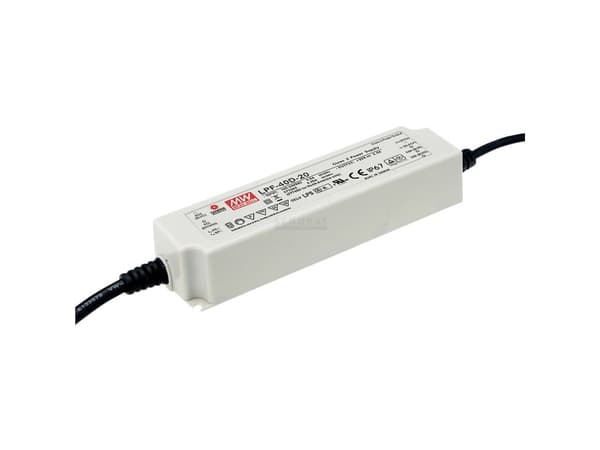

Name: MEAN WELL LPF-40D-24, Universal, Universal, 47/63 Hz, 25,2 W, 12 V, AC-to-DC
SKU: 2015776
Price: 533 NOK
Availability: InStock

MEAN WELL LPF-40D-24, Universal, Universal, 47/63 Hz, 25,2 W, 12 V, AC-to-DC | SKU: LPF-40D-24 | Brand: Mean Well | EAN: 4711287458823<br>

color

weight

Egenskaper

Formål

The type of power supply which this product uses.

Type strømforsyning

Specifies the direction of electrical current conversion, such as from alternating current to direct current (AC to DC) or vice versa.

Strømtype

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

Utgangseffekt

The electrical potential difference delivered by the device, typically expressed in volts (e.g. 24-48).

Utgangsstrøm

The maximum electrical current that the device can provide to a connected load, measured in amperes (A).

The percentage of input energy that is converted into useful work or output, rather than being lost as heat or waste (e.g. 92%).

Effektivitet

Features that protect the device against power problems e.g. overload.

Strømbeskyttelsesfunksjoner

Ytelse

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

Gjennomsnittstid mellom feil (MTBF)

Design

Produktfarge

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.

Relativ luftfuktighet under drift (H-H)

The permissible range of relative humidity, expressed as a percentage, within which the product can be stored without damage.

Lagringsrelativ fuktighet

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible

MEAN WELL LPF-40D-24, Universal, Universal, 47/63 Hz, 25,2 W, 12 V, AC-to-DC

533 kr

533 kr

Produktbeskrivelse

MEAN WELL LPF-40D-24, Universal, Universal, 47/63 Hz, 25,2 W, 12 V, AC-to-DC

533 kr

533 kr

Egenskaper
Formål	Universell
Type strømforsyning	Universell
Strømtype	AC-to-DC
Inngangsfrekvens	47/63 Hz
Utgangseffekt	25,2 W
Utgangsstrøm	12 V
Utgangsstrøm	3,34 A
Effektivitet	84%
Strømbeskyttelsesfunksjoner	Overstrøm, Over-spenning (volt), Overoppheting, Kortslutning

Ytelse
Gjennomsnittstid mellom feil (MTBF)	394900 timer

Design
Produktfarge	Hvit

Miljømessige forhold
Driftstemperatur (T-T)	-40 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 80 °C
Relativ luftfuktighet under drift (H-H)	20 - 95%
Lagringsrelativ fuktighet	10 - 95%

Vekt og dimensjoner
Bredde	43 mm
Dybde	162,5 mm
Høyde	32 mm
Vekt	450 g

MEAN WELL LPF-40D-24, Universal, Universal, 47/63 Hz, 25,2 W, 12 V, AC-to-DC

533 kr

533 kr

Produktbeskrivelse

Spesifikasjoner

MEAN WELL LPF-40D-24, Universal, Universal, 47/63 Hz, 25,2 W, 12 V, AC-to-DC

533 kr

533 kr
