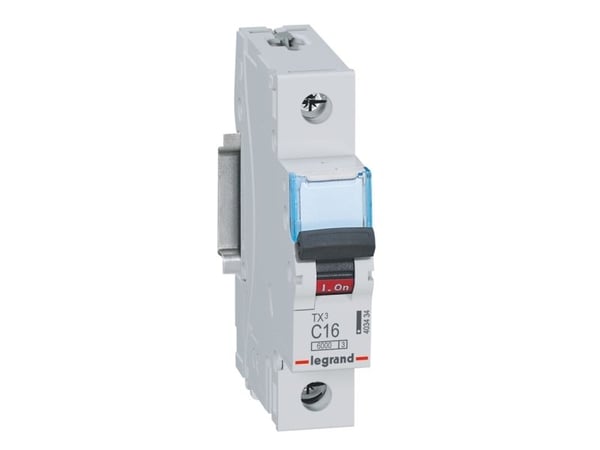

Name: Legrand automatsikring S301 C16 6kA TX3 - 403434
SKU: 4260808
Price: 622 NOK
Availability: InStock

Legrand automatsikring S301 C16 6kA TX3 - 403434 | SKU: 403434 | Brand: Legrand | EAN: 3414970388285<br>

Energihåndtering

The voltage (V) which is required to power the product.

Inngangsspenning

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nominell linjestrøm

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Nominell spenning

The maximum electric field that the insulating material can withstand before electrical breakdown occurs, typically measured in volts per unit of thickness.

Dielektrisk styrke

Egenskaper

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Kretsbrytertype

Modell/Type

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Forurensningsgrad

The classification of the device's ability to limit the let-through energy during a short-circuit fault, typically categorized by levels such as 1, 2, or 3.

Energirestriktiv klasse

The way in which the product is being installed.

Intallasjonstype

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Tekniske detaljer

Specifies the harmful or restricted substances that are not present in the product (e.g. Acetone, Alcohol, or Aluminium).

Legrand automatsikring S301 C16 6kA TX3 - 403434

622 kr

622 kr

Produktbeskrivelse

Legrand automatsikring S301 C16 6kA TX3 - 403434

622 kr

622 kr

Energihåndtering
Inngangsspenning	240 - 415 V
Inngangsfrekvens	50 - 60 Hz
Nominell linjestrøm	16 A
Nominell spenning	230 V
Dielektrisk styrke	4000 V

Egenskaper
Kretsbrytertype	Miniatyr-automatsikring
Modell/Type	Type C
Antall poler	1
Internasjonal beskyttelses (IP)-kode	IP20
Forurensningsgrad	2
Energirestriktiv klasse	3
Intallasjonstype	DIN-skinne

Miljømessige forhold
Oppbevaringstemperaturomåde (Celsius)	-40 - 70 °C

Vekt og dimensjoner
Bredde	17,8 mm
Dybde	77,8 mm
Høyde	88 mm

Tekniske detaljer
Inneholder ikke	Halogen
