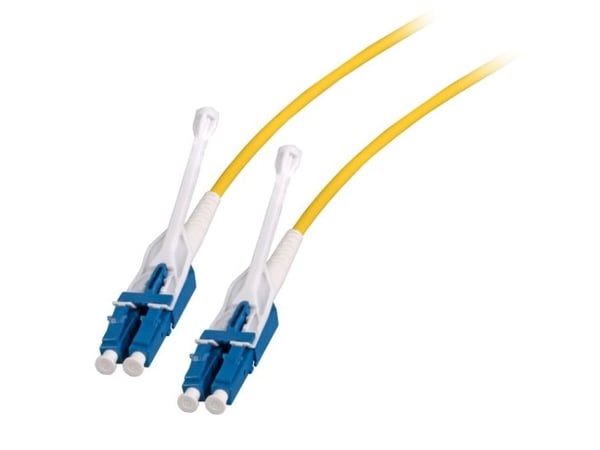

Name: EFB Elektronik DJP-LCLCOM4-UNI-10, 10 m, I-V(ZN) H, G.657.A1, LC, LC
SKU: 10684847
Price: 537 NOK
Availability: InStock

EFB Elektronik DJP-LCLCOM4-UNI-10, 10 m, I-V(ZN) H, G.657.A1, LC, LC | SKU: DJP-LCLCOM4-UNI-10 | Brand: EFB Elektronik | EAN: 4049759193683<br>

color

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

Kabeltype

Produktfarge

A full-duplex system allows communication in both directions

Full tosidig

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibermodusstruktur

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Innsettingstap

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

Bærekraft

Specifies the harmful or restricted substances that are not present in the product (e.g. Acetone, Alcohol, or Aluminium).

Inneholder ikke

Sertifikater

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The distance from one side of the cable to the other

Kabeldiameter

The minimum radius to which the product can be curved without causing structural damage or signal loss, measured in millimetres.

EFB Elektronik DJP-LCLCOM4-UNI-10, 10 m, I-V(ZN) H, G.657.A1, LC, LC

537 kr

537 kr

Produktbeskrivelse

EFB Elektronik DJP-LCLCOM4-UNI-10, 10 m, I-V(ZN) H, G.657.A1, LC, LC

537 kr

537 kr

Egenskaper
Kabellengde	10 m
Fiberoptisk type	G.657.A1
Tilkobling 1	LC
Tilkobling 2	LC
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Kabeltype	I-V(ZN) H
Produktfarge	Gult
Full tosidig	Ja
Fibermodusstruktur	Enkeltmodus
Innsettingstap	0,3 dB
Jakkemateriale	Low smoke zero halogen (LSZH)

Bærekraft
Inneholder ikke	Halogen

Sertifikater
Sertifisering	IEC 61754-20, IEC 60793-2

Miljømessige forhold
Driftstemperatur (T-T)	-20 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-20 - 70 °C

Vekt og dimensjoner
Kabeldiameter	3 mm
Bøyeradius	1 cm
