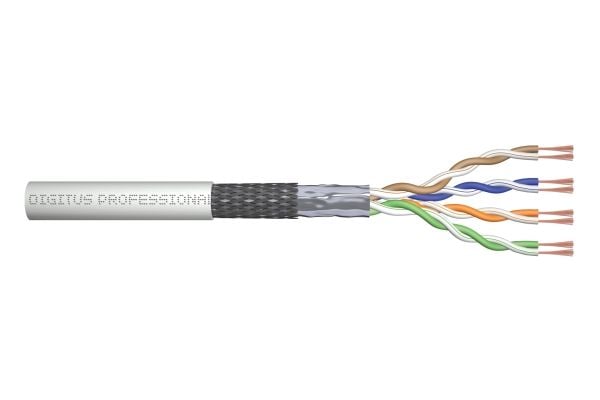

Name: DIGITUS Professional - Samlet kabel - SF/UTP - CAT 5e - grå
SKU: 4231600
Price: 1006 NOK
Availability: InStock

DIGITUS Professional - Samlet kabel - SF/UTP - CAT 5e - grå | SKU: DK-1531-P-1-1 | Brand: Digitus | EAN: 4016032425915<br>

color

Egenskaper

Produktfarge

Kabellengde

Kabelstandard

Kabelskjerming

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

The physical cross-sectional profile of the conductor housing, such as flat or round.

Kabelform

The configuration of the twisted pair wiring, specifying the number of pairs and wires per pair (e.g. 4x2).

Type parkobling (vridd)

The performance or quality grade of the cable, often denoted by a letter or number (e.g. A, B, C), which determines its technical capabilities and suitability for specific applications.

Kabelklasse

The diameter of the conductor based on the American Wire Gauge standard (e.g. 12).

AWG-ledningsstørrelse

The rate at which a signal or operation repeats, measured in MHz.

Frekvens

Country where the device is made. Aka Country of manufacture (COM).

Opprinnelsesland

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The distance across the widest part of the circular cross-section of the product, measured in mm.

Ytre diameter

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

The total space occupied by the product including its packaging, typically measured in cubic centimetres or cubic metres.

Pakkevolum

Logistikk data

The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.

Harmonisert system (HS)-kode

The specific alphanumeric code used for the classification of goods when importing or exporting through the United Kingdom.

UK Trade Tariff-kode

Tekniske detaljer

The method used to protect the internal conductors from electromagnetic interference, such as braiding or a combination of foil and braiding.

DIGITUS Professional - Samlet kabel - SF/UTP - CAT 5e - grå

1 006 kr

1 006 kr

Produktbeskrivelse

DIGITUS Professional - Samlet kabel - SF/UTP - CAT 5e - grå

1 006 kr

1 006 kr

Egenskaper
Produktfarge	Grå
Kabellengde	100 m
Kabelstandard	Cat5e
Kabelskjerming	SF/UTP (S-FTP)
Tilkobling 1	Nei
Tilkobling 2	Nei
Connector 1 kjønn	Nei
Connector 2 kjønn	Nei
Jakkemateriale	Polyvinylklorid (PVC)
Kabelform	Rund
Type parkobling (vridd)	4x2
Kabelklasse	D
AWG-ledningsstørrelse	26/7
Frekvens	100 MHz
Opprinnelsesland	China

Miljømessige forhold
Driftstemperatur (T-T)	-10 - 60 °C
Oppbevaringstemperaturomåde (Celsius)	-10 - 75 °C

Vekt og dimensjoner
Ytre diameter	5,6 mm

Datainnpakking
Pakkebredde	270 mm
Pakkedybde	270 mm
Pakkehøyde	90 mm
Pakkevekt	3,48 kg
Pakkevolum	6561 cm³

Logistikk data
Harmonisert system (HS)-kode	84733080
UK Trade Tariff-kode	85444920

Tekniske detaljer
Skjermingstype	Foil + braiding
