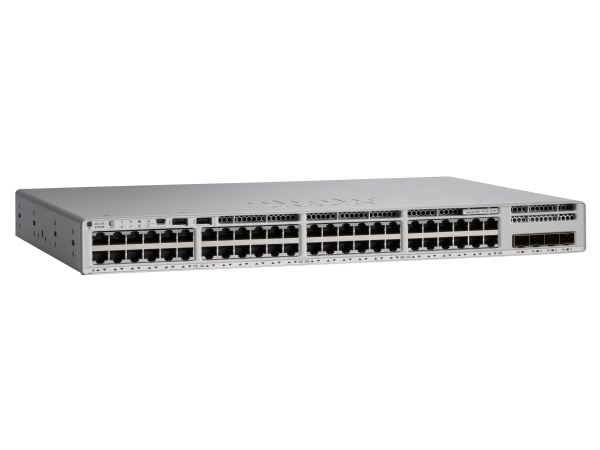

Cisco Catalyst 9200L - Network Essentials - switch - L3 - Styrt - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (opplenke) - rackmonterbar - PoE+ (...

-46 %

Cisco Catalyst 9200L - Network Essentials - switch - L3 - Styrt - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (opplenke) - rackmonterbar - PoE+ (...

Name: Cisco Catalyst 9200L - Network Essentials - switch - L3 - Styrt - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (opplenke) - rackmonterbar - PoE+ (...
SKU: 7301654
Price: 42247 NOK
Availability: InStock

42 247 kr

Tidligere laveste pris:

77 969 kr

På lager

Ti., 25 aug. - fr., 28 aug.

Sikker betaling

14 dagers åpent kjøp

Selges og leveres av

CS MEGASTORE

Produktbeskrivelse

Cisco Catalyst 9200L - Network Essentials - switch - L3 - Styrt - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (opplenke) - rackmonterbar - PoE+ (370 W) | SKU: C9200L-48PL-4X-E | Brand: Cisco | EAN: 0889728298650

Farge

Grå

Lydnivå (dB)

Vekt

4.8

Artikkel nr.

36a7f8d4-ceb2-4dac-980f-3611cf4fe5b9

Styringsfunksjoner
Svitsjtype	Håndtert
Strømbryterbelegg	L3
Quality of Service (QoS) støtte	Ja
Webbasert administrasjon	Ja
MIB-støtte	BRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB

Tilkoblingsevne
Antall Basic switching RJ-45 Ethernet-ports	48
Basic switching RJ-45 Ethernet ports-type	Gigabit Ethernet (10/100/1000)
SFP+ module antall spor	4
Antall USB 2.0-porter	3

Nettverksbygging
Nettverksstandard	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G støtte	Ja
Ethernet-kobberkabelteknologi	100BASE-FX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
IP-ruting	Ja
Rutingoppføringer	3000
Treprotokoll (spekter)	Ja
Nettverksvirtualiseringsteknologier	Virtual Extensible LAN (VXLAN)
IPv4-ruter	3000
IPv6-ruter	1500
Antall VLAN	1024

Dataoverføring
Ruting/svitsjekapasitet	176 Gbit/s
Videresendingshastighet	130,95 Mpps
Størrelse på adressetabell	16000 oppføringer
Jumbo Frames-støtte	Ja
Jumbo rammer	9198
Bufferminne pakke	6 MB

Sikkerhet
Access Control List (ACL)/tilgangskontrolliste	Ja
Sikkerhetsalgoritmer	128-bit AES

Multicast-egenskaper
Multicast-støtte	Ja

Protokoller
Ledelsesprotokoller/håndteringsprotokoller	SNMPv1/v2c/v3
Routerprotokoll	CDP, EIGRP, OSPF, RIP, VRRP

Design
Kan stables	Ja
Produktfarge	Grå
Sikkerhet	IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment
Elektromagnetisk kompatibilitet	47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317

Ytelse
Minnetype	DRAM
Internminne	2048 MB
Flash-minne	4096 MB
Støynivå	42 dB
Gjennomsnittstid mellom feil (MTBF)	346270 timer

Energihåndtering
Strømkilde	AC
Strømforsyning medfølger	Ja
Redundant strømforsyning	Ja
AC-inngangsspenning	100 - 240 V
AC-inngangsfrekvens	50 - 60 Hz
Innput-strøm	6 - 12 A
Strømforbruk (maks.)	600 W

Power over Ethernet (PoE)
Strøm over Ethernet (PoE)	Ja
Antall Power over Ethernet plus (PoE+)-ports	48
Power over Ethernet (PoE) effekt per port	30 W
Total Power over Ethernet (PoE)-budsjett	370 W

Miljømessige forhold
Driftstemperatur (T-T)	-5 - 45 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 70 °C
Relativ luftfuktighet under drift (H-H)	5 - 90%
Driftshøyde	0 - 3000 m
Varmespredning	3412 BTU/t

Vekt og dimensjoner
Bredde	445 mm
Dybde	329 mm
Høyde	44 mm
Vekt	4,8 kg

Logistikk data
Harmonisert system (HS)-kode	85176990
