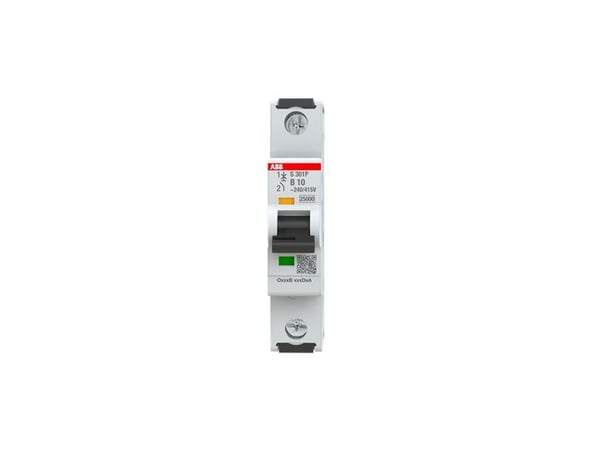

Name: ABB S301P-B10, Miniatyr-automatsikring, Type B, IP20
SKU: 25058871
Price: 694 NOK
Availability: InStock

ABB S301P-B10, Miniatyr-automatsikring, Type B, IP20 | SKU: 2CDS381001R0105 | Brand: ABB | EAN: 4016779080521<br>

color

weight

Energihåndtering

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Nominell linjestrøm

Egenskaper

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Kretsbrytertype

Modell/Type

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Forurensningsgrad

The colour e.g. red, blue, green, black, white.

Produktfarge

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vekt

Tekniske detaljer

Indicates whether the product complies with established environmental and sustainability standards.

Bærekraftsamsvar

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

ABB S301P-B10, Miniatyr-automatsikring, Type B, IP20

694 kr

694 kr

Produktbeskrivelse

ABB S301P-B10, Miniatyr-automatsikring, Type B, IP20

694 kr

694 kr

Energihåndtering
Inngangsfrekvens	50/60 Hz
Nominell linjestrøm	10 A

Egenskaper
Kretsbrytertype	Miniatyr-automatsikring
Modell/Type	Type B
Antall poler	1
Internasjonal beskyttelses (IP)-kode	IP20
Forurensningsgrad	3
Produktfarge	Grå
Sertifisering	IEC/EN 60947-2, IEC/EN 60898-1, UL 1077, CSA 22.2 No. 235

Miljømessige forhold
Driftstemperatur (T-T)	-40 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-55 - 70 °C

Vekt og dimensjoner
Bredde	17,5 mm
Dybde	67,6 mm
Høyde	88 mm
Vekt	124 g

Tekniske detaljer
Bærekraftsamsvar	Ja
Samsvarssertifikat	REACH, RoHS
