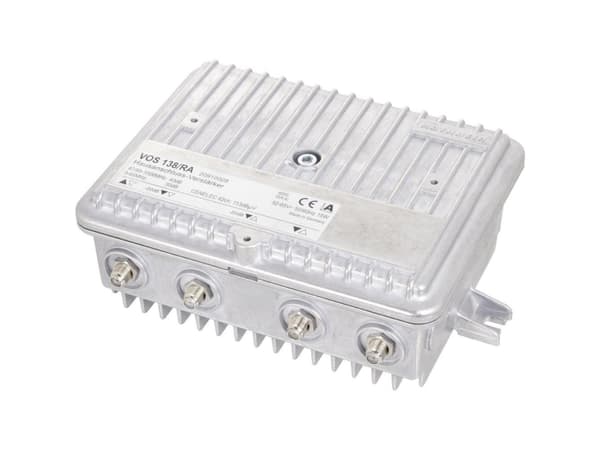

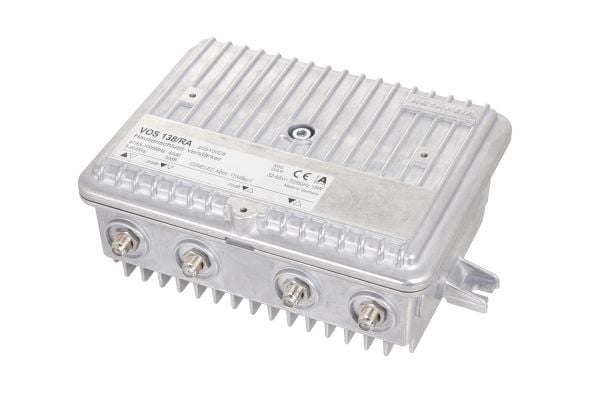

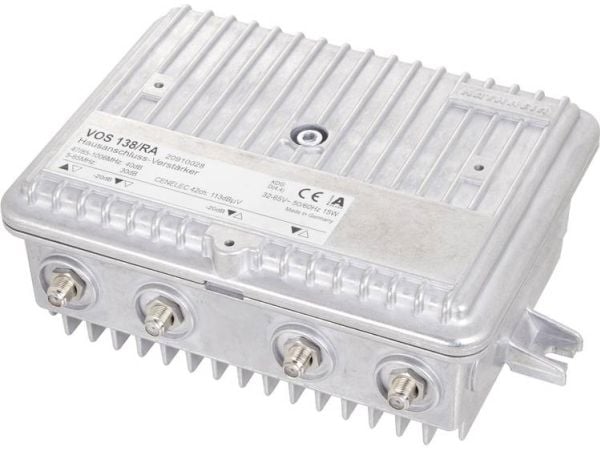

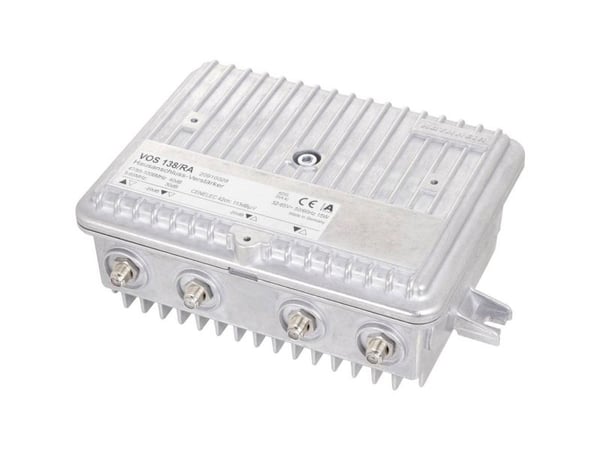

Name: VOS 138/RA HOUSE LINE FORSTERKER 47/85-1006 MHZ
SKU: 3010321
Price: 3357 NOK
Availability: InStock

VOS 138/RA HOUSE LINE FORSTERKER 47/85-1006 MHZ | SKU: 20910028 | Brand: Kathrein | EAN: 4021121497780<br>

weight

Tekniske detaljer

The amount of signal amplification provided in the forward direction, measured in dB.

Gevinst (forovervei)

The amount of signal amplification provided for the return path, measured in dB.

Gevinst (bakovervei)

The measure of the amount of noise added by the device to the signal, expressed in decibels (dB).

Støyfigur

The colour e.g. red, blue, green, black, white.

Produktfarge

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

The increase in signal power or amplitude provided by the device, typically measured in decibels (dB).

Gain

The range of frequencies which can be produced by the device, or can be detected/used by the device to produce an output.

Frekvensområde

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifisering

Tilkoblingsevne

The type and number of physical interfaces used to connect the device to other hardware (e.g. 13-pin or BNC).

Tilkobling

Energihåndtering

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

Strømforbruk (vanlig bruk)

The voltage (V) which is required to power the product.

Inngangsspenning

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

Dimensions of the product (Width x Depth x Height).

Dimensjoner (B x D x H)

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Tekniske detaljer
Gevinst (forovervei)	20 dB
Gevinst (bakovervei)	20 dB
Støyfigur	7 dB
Produktfarge	Metallisk
Internasjonal beskyttelses (IP)-kode	IP54
Gain	30 dB
Frekvensområde	85 - 1006 MHz
Sertifisering	EN 60728-11, EN 50083-2, EN 60065

Tilkoblingsevne
Tilkobling	F

Energihåndtering
Strømforbruk (vanlig bruk)	15 W
Inngangsspenning	32 - 65 V
Inngangsfrekvens	50 - 60 Hz

Miljømessige forhold
Driftstemperatur (T-T)	-20 - 55 °C

Vekt og dimensjoner
Dimensjoner (B x D x H)	218 x 150 x 80 mm
Vekt	1,3 kg

Datainnpakking
Pakkebredde	170 mm
Pakkedybde	230 mm
Pakkehøyde	90 mm
Pakkevekt	1,4 kg
