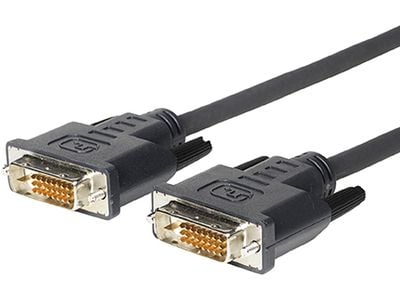

Name: VivoLink Pro - DVI-kabel - DVI-D (hann) til DVI-D (hann) - 1 m - tommelskruer - svart
SKU: 1197928
Price: 281 NOK
Availability: InStock

VivoLink Pro - DVI-kabel - DVI-D (hann) til DVI-D (hann) - 1 m - tommelskruer - svart | SKU: PRODVIS1 | Brand: VivoLink | EAN: 5712505316757<br>

color

weight

Egenskaper

Kabellengde

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

The configuration and number of pins for the first connector, including ground pins (e.g. 24+5).

Kontakt 1, pinout

The configuration of pins and wires for the second connector, specified by the number of signal and ground lines (e.g., 18+5).

Kontakt 2, pinout

The colour e.g. red, blue, green, black, white.

Produktfarge

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

Støttede grafikkoppløsninger

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

HDCP

A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible.

Dual Link DVI

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.

Dataoverføringshastighet

The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.

Maksimal oppløsning

The diameter of the conductor based on the American Wire Gauge standard (e.g. 12).

AWG-ledningsstørrelse

What the connector contacts are covered with (layer on top).

Kontaktplettering

Indicates whether the product is protected against electromagnetic interference to prevent it from affecting other nearby devices.

Magnetisk beskyttet

The material used for the outer protective layer of the product, such as ABS synthetics or Aramid.

Kabelhylsemateriale

Vekt og dimensjoner

The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

Kabeldiameter

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vekt

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

The number of individual units contained within a single sales package, measured in pc(s).

VivoLink Pro - DVI-kabel - DVI-D (hann) til DVI-D (hann) - 1 m - tommelskruer - svart

281 kr

281 kr

Produktbeskrivelse

VivoLink Pro - DVI-kabel - DVI-D (hann) til DVI-D (hann) - 1 m - tommelskruer - svart

281 kr

281 kr

Egenskaper
Kabellengde	1 m
Tilkobling 1	DVI-D
Tilkobling 2	DVI-D
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Kontakt 1, pinout	24+1
Kontakt 2, pinout	24+1
Produktfarge	Svart
Støttede grafikkoppløsninger	2560 x 1600 (WQXGA)
HDCP	Ja
Dual Link DVI	Ja
Dataoverføringshastighet	9,9 Gbit/s
Maksimal oppløsning	2560 x 1600 piksler
AWG-ledningsstørrelse	26
Kontaktplettering	Gull
Magnetisk beskyttet	Ja
Kabelhylsemateriale	Polyvinylklorid (PVC)

Vekt og dimensjoner
Kabeldiameter	9,5 mm
Vekt	10 g

Datainnpakking
Pakkebredde	158 mm
Pakkedybde	136 mm
Pakkehøyde	40 mm
Pakkevekt	110 g
Antall per pakke	1 stykker
