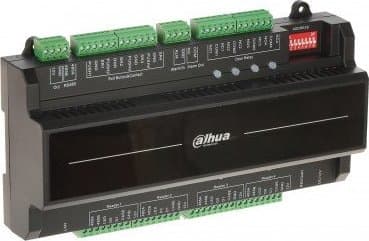

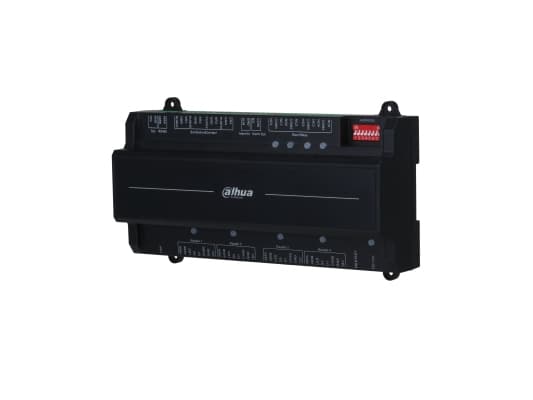

Name: TILGANGSKONTROLL ASC2204B-S DAHUA
SKU: 9177496
Price: 2433 NOK
Availability: InStock

TILGANGSKONTROLL ASC2204B-S DAHUA | SKU: ASC2204B-S | Brand: DAHUA | EAN: 6939554993411<br>

Tekniske detaljer

The physical construction and mounting style of the outer enclosure.

Veskedesign

The maximum quantity of doors supported by device.

Maksimalt antall dører

The product contains a UPS (Uninterruptible Power Supply), which is an electrical apparatus that provides emergency power to a load when the input power source, typically mains power, fails.

Innebygds UPS

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

Videoopptaksgrensesnitt

Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

Støttede nettverksprotokoller

The number of people that use or can use this product.

Antall brukere

Indicates whether the device supports the connection of an external button to trigger the unlocking of a door from the inside.

Utgangsknapp støttes

Ytelse

Indicates whether the device supports the Wiegand communication protocol for transmitting credential data to a controller.

Wiegand-grensesnitt

The maximum number of external Wiegand-interface card readers that can be connected to the device.

Antall Wiegand-avlesere som støttes

The number of available physical ports on the device used to receive external trigger signals from sensors or other security equipment.

Alarm inngang-kanaler

Indicates whether the device triggers an alert if an unauthorized attempt is made to open the housing or remove the unit from its mounting.

Aktiv tuklealarm

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Sertifisering

Energihåndtering

Defines the range of operating voltages available

Driftsspenning

The amount of electrical current consumed by the device during normal operation, typically measured in amperes (A) or milliamperes (mA).

Driftsstrøm

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

Strømforbruk (vanlig bruk)

The amount of electrical energy consumed by the unit when it is powered on but not actively performing its primary function, measured in Watts.

Strømforbruk (ingen belastning)

Tilkoblingsevne

The number of available RS-485 serial communication interfaces on the device.

RS-485-port

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.

Relativ luftfuktighet under drift (H-H)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

TILGANGSKONTROLL ASC2204B-S DAHUA

2 433 kr

2 433 kr

Early Black Friday er i gang: se alle deals

Produktbeskrivelse

TILGANGSKONTROLL ASC2204B-S DAHUA

2 433 kr

2 433 kr

Early Black Friday er i gang: se alle deals

Tekniske detaljer
Veskedesign	Ren/Enkel
Maksimalt antall dører	4 dører
Innebygds UPS	Nei
Videoopptaksgrensesnitt	RS-485
Støttede nettverksprotokoller	IPv4; TCP; UDP
Antall brukere	100000 bruker(e)
Utgangsknapp støttes	Ja

Ytelse
Wiegand-grensesnitt	Ja
Antall Wiegand-avlesere som støttes	4
Alarm inngang-kanaler	1
Aktiv tuklealarm	Ja
Sertifisering	CE/FCC/UL

Energihåndtering
Driftsspenning	12 V
Driftsstrøm	1,4 A
Strømforbruk (vanlig bruk)	41,6 W
Strømforbruk (ingen belastning)	0,8 W

Tilkoblingsevne
RS-485-port	5

Miljømessige forhold
Driftstemperatur (T-T)	-30 - 60 °C
Relativ luftfuktighet under drift (H-H)	5 - 90%

Vekt og dimensjoner
Bredde	210 mm
Dybde	50 mm
Høyde	106 mm

Datainnpakking
Pakkebredde	255 mm
Pakkedybde	87 mm
Pakkehøyde	166 mm
Pakkevekt	600 g
