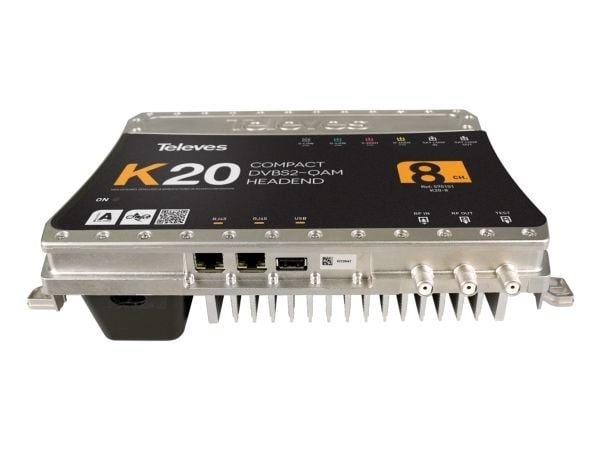

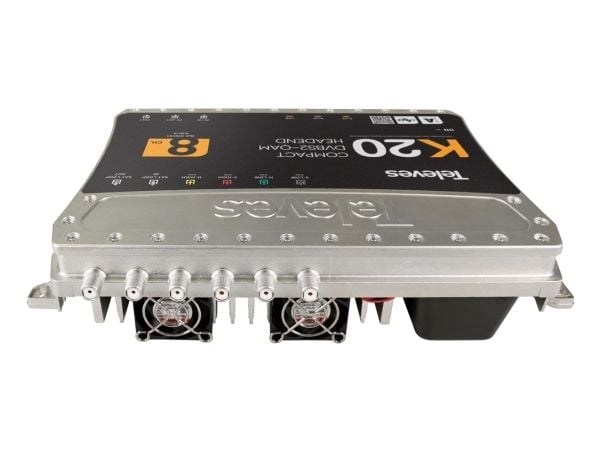

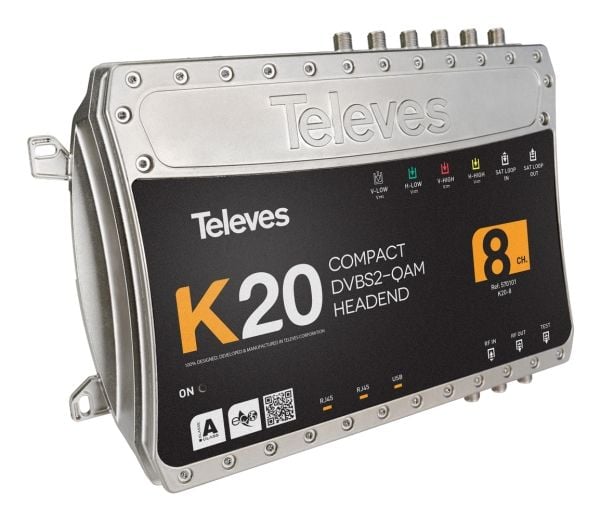

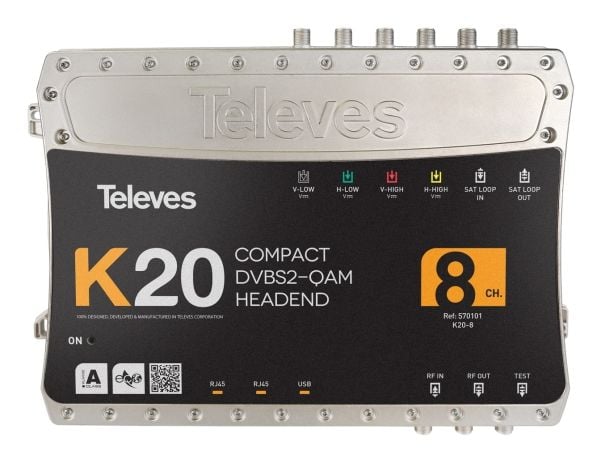

Name: Televes K20, 950 - 2150 MHz, 49 - 84 dBµV, 75 O, 95 dBµV, 46 - 862 MHz, 8,28 MHz
SKU: 20177913
Price: 29937 NOK
Availability: InStock

Televes K20, 950 - 2150 MHz, 49 - 84 dBµV, 75 O, 95 dBµV, 46 - 862 MHz, 8,28 MHz | SKU: 570101 | Brand: Televes | EAN: 8424450212714<br>

color

weight

Ytelse

Inngangsfrekvensområde

Inngående spennings område

Inngangsimpedans

Utgående spenning

Utgangsfrekvensområde

Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency.

Båndbredde

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.

Modulator

Forward Error Correction (FEC)-kodehastighet

Design

Enhetstype

The colour e.g. red, blue, green, black, white.

Produktfarge

Energihåndtering

Strømkildetype

The voltage (V) which is required to power the product.

Inngangsspenning

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

The maximum amount of power used by the device.

Strømforbruk (maks.)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vekt

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Televes K20, 950 - 2150 MHz, 49 - 84 dBµV, 75 O, 95 dBµV, 46 - 862 MHz, 8,28 MHz

29 937 kr

29 937 kr

Produktbeskrivelse

Televes K20, 950 - 2150 MHz, 49 - 84 dBµV, 75 O, 95 dBµV, 46 - 862 MHz, 8,28 MHz

29 937 kr

29 937 kr

Ytelse
Inngangsfrekvensområde	950 - 2150 MHz
Inngående spennings område	49 - 84 dBμV
Inngangsimpedans	75 Ω
Utgående spenning	95 dBμV
Utgangsfrekvensområde	46 - 862 MHz
Båndbredde	8,28 MHz
Modulator	8PSK, QPSK
Forward Error Correction (FEC)-kodehastighet	1/2, 1/3, 1/4, 2/3, 2/5, 3/4, 3/5, 5/6, 8/9, 9/10

Design
Enhetstype	Digitalt kontrollsenter
Produktfarge	Svart, Sølv

Energihåndtering
Strømkildetype	AC
Inngangsspenning	230 V
Inngangsfrekvens	50/60 Hz
Strømforbruk (maks.)	36 W

Vekt og dimensjoner
Bredde	273 mm
Dybde	203 mm
Høyde	57 mm
Vekt	3,42 kg
Pakkebredde	298 mm
Pakkedybde	76 mm
Pakkehøyde	202 mm
Pakkevekt	4,18 kg

Televes K20, 950 - 2150 MHz, 49 - 84 dBµV, 75 O, 95 dBµV, 46 - 862 MHz, 8,28 MHz

29 937 kr

29 937 kr

Produktbeskrivelse

Spesifikasjoner

Televes K20, 950 - 2150 MHz, 49 - 84 dBµV, 75 O, 95 dBµV, 46 - 862 MHz, 8,28 MHz

29 937 kr

29 937 kr
