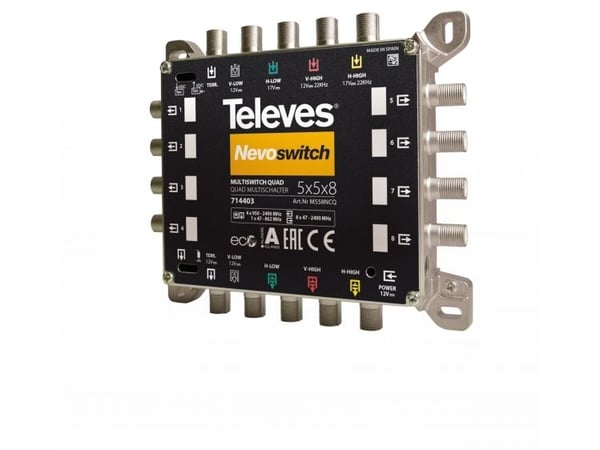

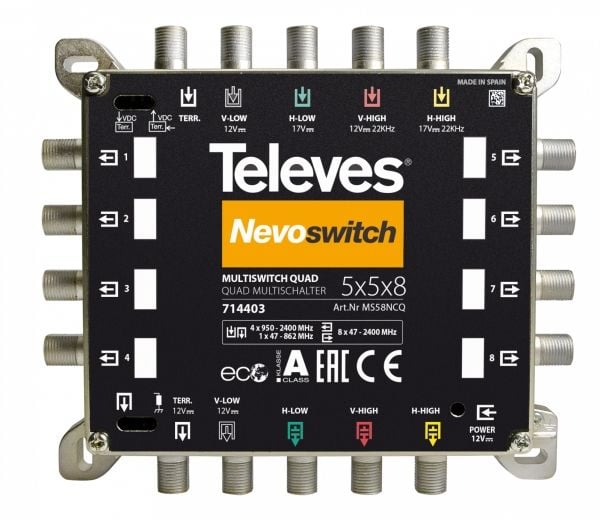

Name: Televes 714403, 5 innganger, 13 utganger, 950 - 2400 MHz, 47 - 862 MHz, 4 dB, 2 dB
SKU: 10011165
Price: 1602 NOK
Availability: InStock

Televes 714403, 5 innganger, 13 utganger, 950 - 2400 MHz, 47 - 862 MHz, 4 dB, 2 dB | SKU: MS58NCQ | Brand: Televes | EAN: 8424450172865<br>

weight

Egenskaper

The total number of available input ports or channels on the device, measured in inputs.

Antall inputs

The quantity of outputs, which is the data, energy or other things produced by the product.

Antall output

The range of frequencies that the device can receive from a satellite source, measured in MHz.

Inngangs frekvensområdet (satellitt)

The range of frequencies supported for terrestrial input signals, measured in MHz.

Inngangs frekvensområdet (bakkenett)

The amount of signal strength lost as it passes through the device, measured in dB.

Gjennom tap (satellitt)

The amount of signal strength lost as the terrestrial signal passes through the device, measured in dB.

Gjennom tap (bakkenett)

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Energihåndtering

The voltage (V) which is required to power the product.

Inngangsspenning

The range of acceptable input signal levels that the device can process, measured in dBµV.

Inngående spennings område

The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).

Nåværende forbruk

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vekt

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Televes 714403, 5 innganger, 13 utganger, 950 - 2400 MHz, 47 - 862 MHz, 4 dB, 2 dB

1 602 kr

1 602 kr

Produktbeskrivelse

Televes 714403, 5 innganger, 13 utganger, 950 - 2400 MHz, 47 - 862 MHz, 4 dB, 2 dB

1 602 kr

1 602 kr

Egenskaper
Antall inputs	5 innganger
Antall output	13 utganger
Inngangs frekvensområdet (satellitt)	950 - 2400 MHz
Inngangs frekvensområdet (bakkenett)	47 - 862 MHz
Gjennom tap (satellitt)	4 dB
Gjennom tap (bakkenett)	2 dB
Internasjonal beskyttelses (IP)-kode	IP20

Energihåndtering
Inngangsspenning	12 V
Inngående spennings område	92 - 105 dBμV
Nåværende forbruk	40 mA

Miljømessige forhold
Driftstemperatur (T-T)	-5 - 45 °C

Vekt og dimensjoner
Bredde	137 mm
Dybde	29 mm
Høyde	121 mm
Vekt	369 g
Pakkebredde	138 mm
Pakkedybde	169 mm
Pakkehøyde	92 mm
Pakkevekt	620 g
