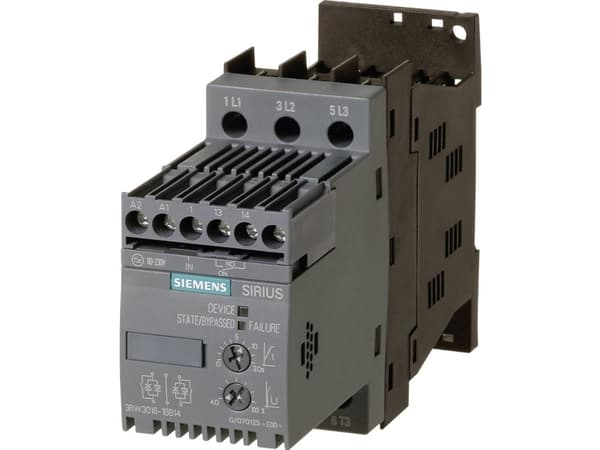

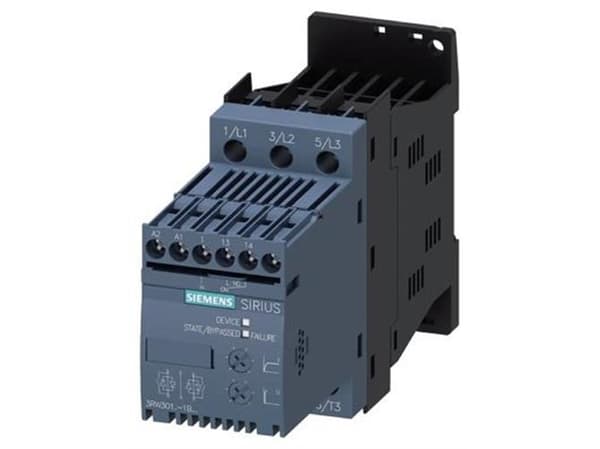

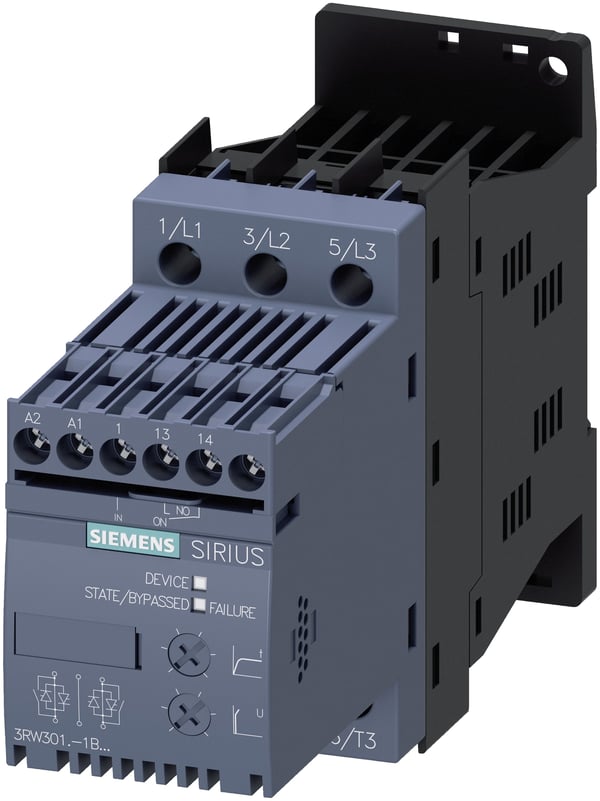

Name: SOFTSTARTER 7,5KW 17,6A 230VUC
Brand: Siemens
SKU: 1771777
Price: 4449 NOK
Availability: InStock

SOFTSTARTER 7,5KW 17,6A 230VUC | SKU: 3RW3018-1BB14 | Brand: Siemens | EAN: 4011209719668<br>

Egenskaper

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Type aktiveringsspenning

Nominell styreforsyningsspenning (DC)

Nominell styreforsyningsspenning (AC 50 Hz)

Nominell styreforsyningsspenning (AC 60 Hz)

Nominell driftsspenning (Ue)

Integrert motoroverbelastningsbeskyttelse

Nominell effekt for trefasemotor (inline, 400 V)

Nominell trefasemotoreffekt (inline, 230 V)

The different activities/purposes of the device.

Funksjoner

Omgivelsestemperatur uten reduksjon (maks.)

Intern bypass

Momentstyring

Nominell driftsstrøm (Ie ved 40 °C Tu)

Minimum ordreantall

Batteri inkludert

Maksimalt bestillingsantall

Vekt og dimensjoner

Pakkevekt

The distance from the front to the back of the packaging.

Pakkedybde

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the top to the bottom of the packaging.

SOFTSTARTER 7,5KW 17,6A 230VUC

4 449 kr

4 449 kr

Produktbeskrivelse

SOFTSTARTER 7,5KW 17,6A 230VUC

4 449 kr

4 449 kr

Egenskaper
Internasjonal beskyttelses (IP)-kode	IP20

Tekniske detaljer
Samsvarssertifikat	CE, RoHS, REACH
Type aktiveringsspenning	AC/DC
Nominell styreforsyningsspenning (DC)	110 - 230 V
Nominell styreforsyningsspenning (AC 50 Hz)	110 - 230 V
Nominell styreforsyningsspenning (AC 60 Hz)	110 - 230 V
Nominell driftsspenning (Ue)	200 - 480 V
Integrert motoroverbelastningsbeskyttelse	Nei
Nominell effekt for trefasemotor (inline, 400 V)	7,5 kW
Nominell trefasemotoreffekt (inline, 230 V)	4 kW
Funksjoner	Single direction
Omgivelsestemperatur uten reduksjon (maks.)	40 °C
Intern bypass	Ja
Momentstyring	Nei
Nominell driftsstrøm (Ie ved 40 °C Tu)	17,6 A
Minimum ordreantall	1 stykker
Batteri inkludert	Nei
Maksimalt bestillingsantall	1 stykker

Vekt og dimensjoner
Pakkevekt	436 g
Pakkedybde	165 mm
Pakkebredde	123 mm
Pakkehøyde	60 mm
