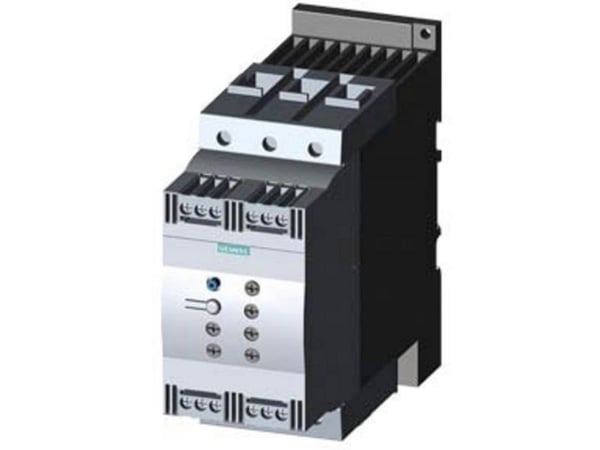

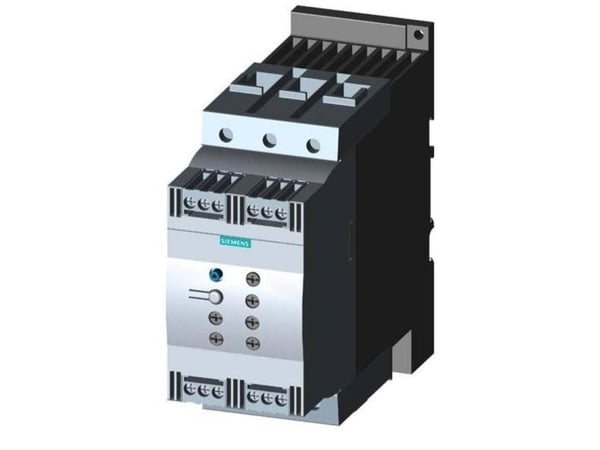

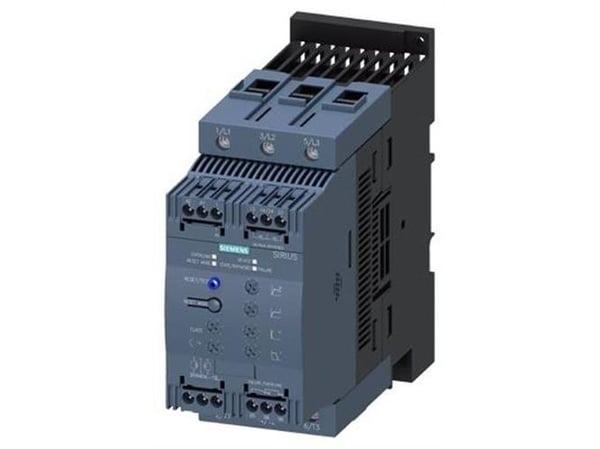

Name: Soft starter S3 80A 480V 110-230V
Brand: Siemens
SKU: 4667925
Price: 29481 NOK
Availability: InStock

Soft starter S3 80A 480V 110-230V | SKU: 3RW40461BB14 | Brand: Siemens | EAN: 4011209693258<br>

Egenskaper

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Actuating voltage type

Rated control supply voltage (DC)

Rated control supply voltage (AC 50Hz)

Rated control supply voltage (AC 60Hz)

Rated operating voltage (Ue)

Integrated motor overload protection

Rated power of three-phase motor (inline, 400V)

Rated three-phase motor power (inline, 230V)

The different activities/purposes of the device.

Funksjoner

Ambient temperature without derating (max)

Internal bypass

Torque control

Rated operational current (Ie at 40°C Tu)

Vekt og dimensjoner

Pakkevekt

The distance from the front to the back of the packaging.

Pakkedybde

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the top to the bottom of the packaging.

Soft starter S3 80A 480V 110-230V

29 481 kr

29 481 kr

Produktbeskrivelse

Soft starter S3 80A 480V 110-230V

29 481 kr

29 481 kr

Egenskaper
Internasjonal beskyttelses (IP)-kode	IP00

Tekniske detaljer
Samsvarssertifikat	CE, RoHS, REACH
Actuating voltage type	AC/DC
Rated control supply voltage (DC)	110 - 230 V
Rated control supply voltage (AC 50Hz)	110 - 230 V
Rated control supply voltage (AC 60Hz)	110 - 230 V
Rated operating voltage (Ue)	200 - 480 V
Integrated motor overload protection	Ja
Rated power of three-phase motor (inline, 400V)	45 kW
Rated three-phase motor power (inline, 230V)	22 kW
Funksjoner	Single direction
Ambient temperature without derating (max)	40 °C
Internal bypass	Ja
Torque control	Nei
Rated operational current (Ie at 40°C Tu)	80 A

Vekt og dimensjoner
Pakkevekt	1,84 kg
Pakkedybde	220 mm
Pakkebredde	178 mm
Pakkehøyde	88 mm
