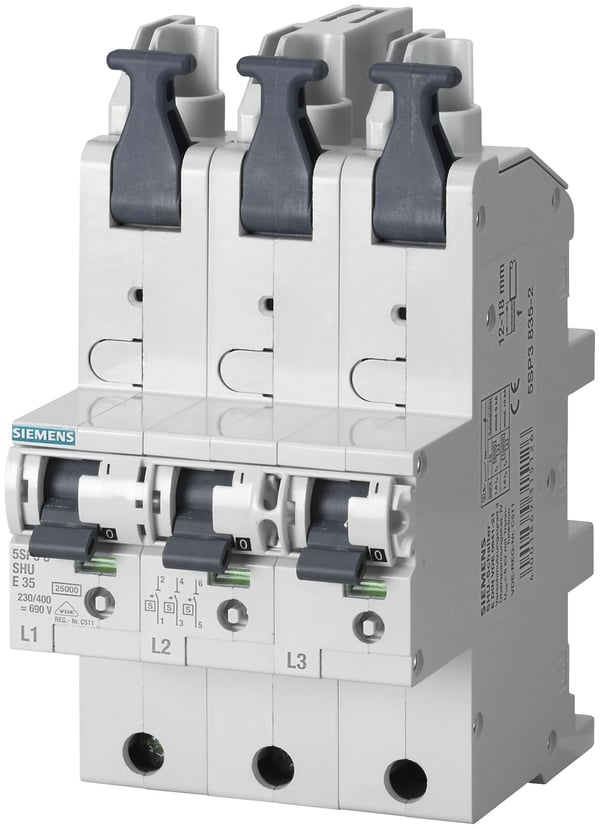

Name: Siemens vernekontakt for hovedledning 35 A 230/400 V (5SP3835-2, 5SP38352)
Brand: Siemens
SKU: 4669200
Price: 2982 NOK
Availability: InStock

Siemens vernekontakt for hovedledning 35 A 230/400 V (5SP3835-2, 5SP38352) | SKU: 5SP38352 | Brand: Siemens | EAN: 4001869315126<br>

Energihåndtering

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

Nominell linjestrøm

Nominell spenning

Egenskaper

Antall poler

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Forurensningsgrad

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Energihåndtering
Inngangsfrekvens	50 Hz
Nominell linjestrøm	35 A
Nominell spenning	400 V

Egenskaper
Antall poler	3P
Internasjonal beskyttelses (IP)-kode	IP40
Forurensningsgrad	3

Datainnpakking
Pakkebredde	98 mm
Pakkedybde	185 mm
Pakkehøyde	145 mm
Pakkevekt	1,26 kg

Tekniske detaljer
Samsvarssertifikat	CE, RoHS
Nominell brytekapasitet	25 kA
Nominell overspenning	6 kV
Bryting av nøytralleder	Nei
Overspennings kategori	CAT IV
Monteringsmetode	Busbar mounted
Batteri inkludert	Nei
Maksimalt bestillingsantall	1 stykker

Logistikk data
Minimum ordreantall	1 stykker
