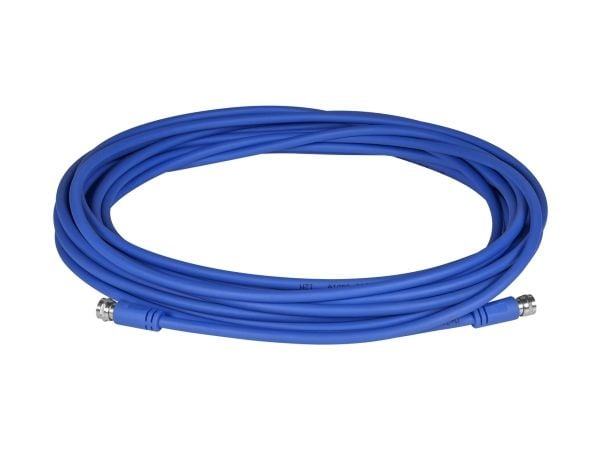

Name: Megasat Flex, 5 m, F-type, F-type, Blå
SKU: 10816708
Price: 289 NOK
Availability: InStock

Megasat Flex, 5 m, F-type, F-type, Blå | SKU: 100204 | Brand: Megasat | EAN: 4046173106800<br>

color

Egenskaper

Kabellengde

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

Tilkobling 1 formfaktor

Tilkobling 2 formfaktor

Produktfarge

The effective resistance of an electric circuit or component to alternating current

Impedans

Kobling ytre diameter

Lederstørrelse

Conductor komposisjon

Isolasjonens ytterdiameter

Skjold materiale

Beskyttelseseffektivitet

Emballasjeinnhold

Antall per pakke

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Megasat Flex, 5 m, F-type, F-type, Blå

289 kr

289 kr

Produktbeskrivelse

Megasat Flex, 5 m, F-type, F-type, Blå

289 kr

289 kr

Egenskaper
Kabellengde	5 m
Tilkobling 1	F-type
Tilkobling 2	F-type
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Tilkobling 1 formfaktor	Rett
Tilkobling 2 formfaktor	Rett
Produktfarge	Blå
Impedans	75 Ω
Kobling ytre diameter	6 mm
Lederstørrelse	3,1 mm
Conductor komposisjon	7x Ø 0.2 mm CU
Isolasjonens ytterdiameter	2,4 mm
Skjold materiale	Aluminium
Beskyttelseseffektivitet	75 dB

Emballasjeinnhold
Antall per pakke	1 stykker

Datainnpakking
Pakkebredde	140 mm
Pakkedybde	50 mm
Pakkehøyde	140 mm
Pakkevekt	237 g
Pakketype	Boks

Sertifikater
Sertifisering	RoHS, ISO 9001
