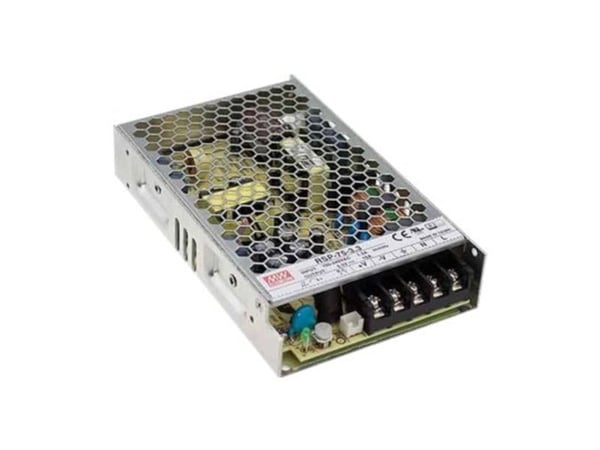

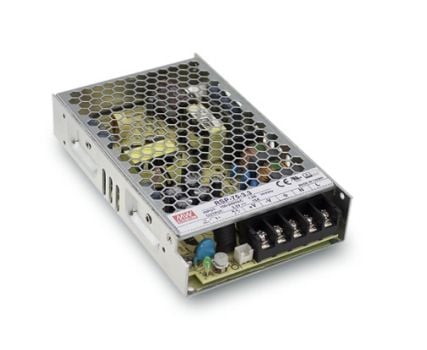

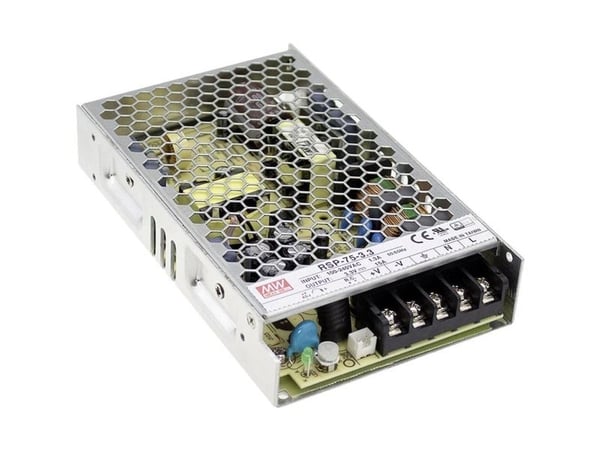

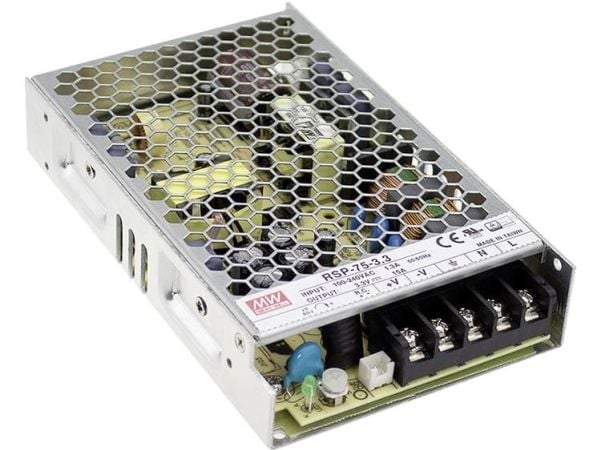

Name: MEAN WELL RSP-75-15, 75 W, 85 - 264 V, 47 - 63 Hz, Aktiv, 16 ms, 86%
SKU: 3440186
Price: 563 NOK
Availability: InStock

MEAN WELL RSP-75-15, 75 W, 85 - 264 V, 47 - 63 Hz, Aktiv, 16 ms, 86% | SKU: RSP-75-15 | Brand: Mean Well | EAN: 4021087013659<br>

color

weight

Energihåndtering

The total power that is needed by the device

Total strøm

The voltage of the AC electricity that is inputted into the product.

AC-inngangsspenning

The range of alternating current frequencies the device can accept from the power source, measured in hertz (e.g., 45 - 65).

AC-inngangsfrekvens

Specifies the method used by the power supply unit to improve the efficiency of power delivery and reduce harmonic distortion, such as Active or Passive PFC.

Power Factor Correction (PFC) type

The duration in milliseconds that the power supply can maintain a stable output voltage during a brief loss of input power.

Holdtid

The percentage of input energy that is converted into useful work or output, rather than being lost as heat or waste (e.g. 92%).

Effektivitet

Features that protect the device against power problems e.g. overload.

Strømbeskyttelsesfunksjoner

Ytelse

The physical dimensions and shape standard of the power supply, which determines compatibility with the chassis (e.g., ATX or Flex ATX).

Strømforsyningsenhetens formfaktor

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

Gjennomsnittstid mellom feil (MTBF)

Design

Produktfarge

The specific status lights available on the unit to provide visual feedback on its current state or connectivity (e.g., AC input, ACT, or Access).

LED-indikatorer

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

The range of relative humidity, expressed as a percentage, within which the device can function correctly without damage or performance loss.

Relativ luftfuktighet under drift (H-H)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible

Vekt

Andre funksjoner

The time required for a signal or voltage to transition from a specified low value to a specified high value, measured in milliseconds or microseconds.

MEAN WELL RSP-75-15, 75 W, 85 - 264 V, 47 - 63 Hz, Aktiv, 16 ms, 86%

563 kr

563 kr

Produktbeskrivelse

MEAN WELL RSP-75-15, 75 W, 85 - 264 V, 47 - 63 Hz, Aktiv, 16 ms, 86%

563 kr

563 kr

Energihåndtering
Total strøm	75 W
AC-inngangsspenning	85 - 264 V
AC-inngangsfrekvens	47 - 63 Hz
Power Factor Correction (PFC) type	Aktiv
Holdtid	16 ms
Effektivitet	86%
Strømbeskyttelsesfunksjoner	Over-spenning (volt), Overbelastning, Kortslutning

Ytelse
Strømforsyningsenhetens formfaktor	1U
Gjennomsnittstid mellom feil (MTBF)	296700 timer

Design
Produktfarge	Metallisk
LED-indikatorer	Ja

Miljømessige forhold
Driftstemperatur (T-T)	-25 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 85 °C
Relativ luftfuktighet under drift (H-H)	20 - 90%

Vekt og dimensjoner
Bredde	97 mm
Dybde	159 mm
Høyde	30 mm
Vekt	440 g

Andre funksjoner
Rensetid	30 ms
