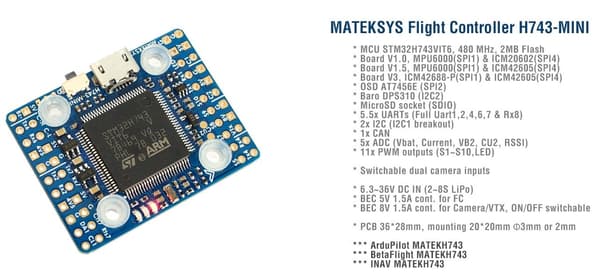

Mateksys H743-MINI V3 Flight Controller Spesifikasjoner

MCU STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash

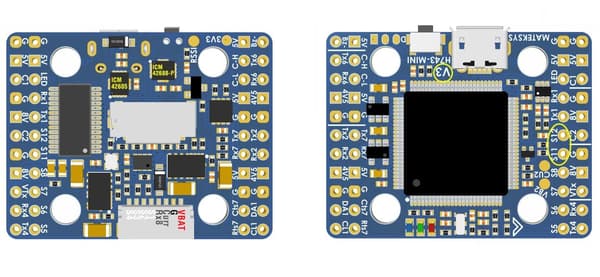

Board ICM42688-P (SPI1) & ICM42605 (SPI4)
Barometer DPS310 (I2C2)
OSD AT7456E (SPI2)
Blackbox MicroSD card socket (SDIO)

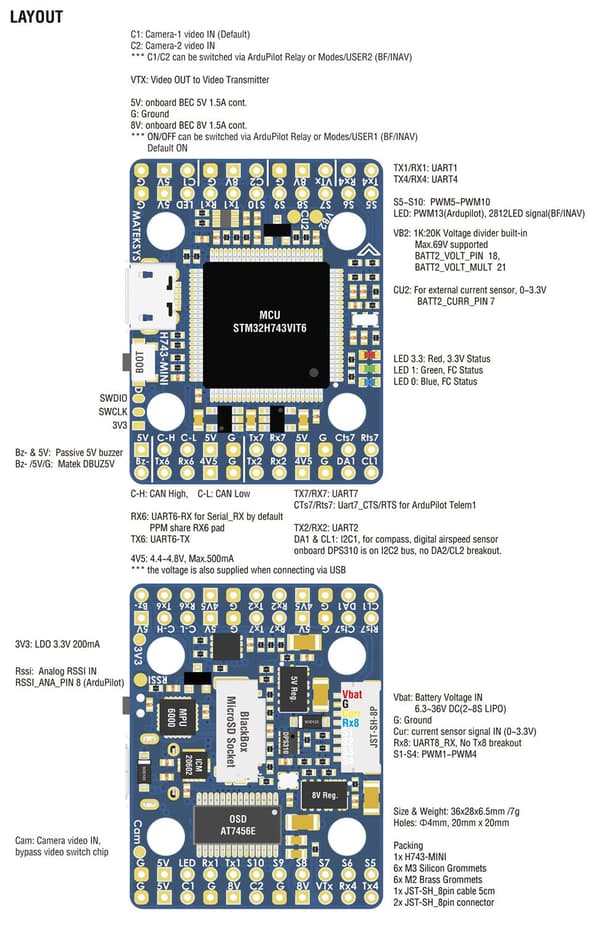

Uarts 5.5x Uarts (1,2,4,6,7, Rx8)
11x PWM Outputs
Innspenning 2-8s LiPo

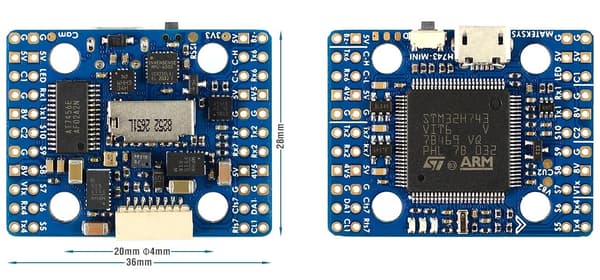

Dimensjoner

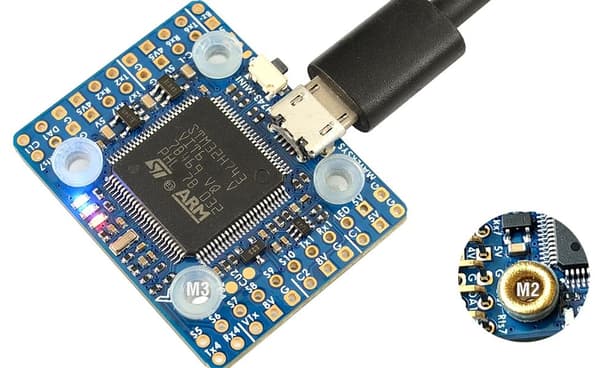

* Mounting: 20 x 20mm, ø2mm (med silikonfester) / (ø3mm m/ silikon & messingfester)
* Dimensjoner: 36 x 28 x 6.5 mm
* Vekt: 7g

Innhold
* 1x H743-MINI
* 6x Silicon grommets M4 to M3
* 6x Brass grommets M3 to M2
* 1x JST-SH1.0_8pin cable, 5cm
* 2x JST-SH1.0_8pin connectors
*
