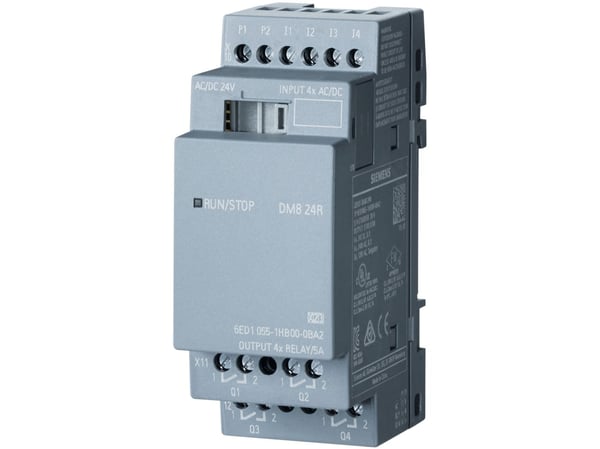

Name: LOGO! DM8 24R Udvidelsesmodul PU/I/O 24V 4DI/4DO
Brand: Siemens
SKU: 1375555
Price: 995 NOK
Availability: InStock

LOGO! DM8 24R Udvidelsesmodul PU/I/O 24V 4DI/4DO | SKU: 6ED1055-1HB00-0BA2 | Brand: Siemens | EAN: 4034106029449<br>

weight

Egenskaper

The type of module, which is any of a number of distinct but interrelated units from which a program may be built up or into which a complex activity may be analysed.

Modul type

The direction which the signal is transmitted, or the direction from where the signal is received.

Signalretning

The number of channels the device has. There can be an individual input or output for each channel.

Antall kanaler

Antall digitale inngangskanaler

Antall digitale utgangskanaler

A channel is a means of communicating information.

Kanaltype

Energihåndtering

DC inngående spenning

Vekt og dimensjoner

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Vekt

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the front to the back of the packaging.

Pakkedybde

The distance from the top to the bottom of the packaging.

Pakkehøyde

Pakkevekt

Tekniske detaljer

Bærekraftsamsvar

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Egenskaper
Modul type	Digitalt
Signalretning	Inngang/Utgang
Antall kanaler	8 kanaler
Antall digitale inngangskanaler	4 kanaler
Antall digitale utgangskanaler	4 kanaler
Kanaltype	Relé

Energihåndtering
DC inngående spenning	20.4-28.8 V

Vekt og dimensjoner
Høyde	90 mm
Vekt	166 g
Pakkebredde	70 mm
Pakkedybde	95 mm
Pakkehøyde	55 mm
Pakkevekt	166 g

Tekniske detaljer
Bærekraftsamsvar	Ja
Samsvarssertifikat	CE, RoHS, REACH

Logistikk data
Opprinnelsesland	China
