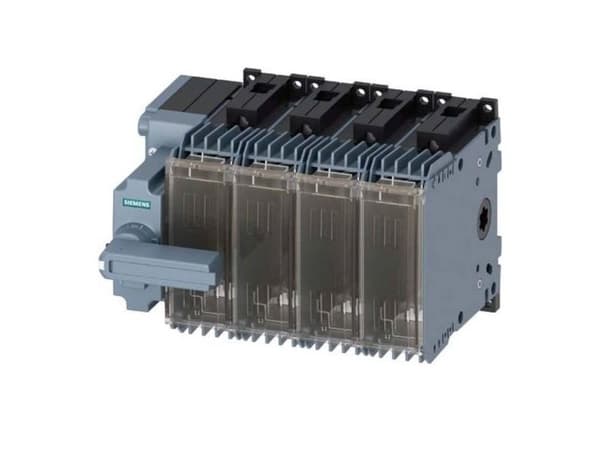

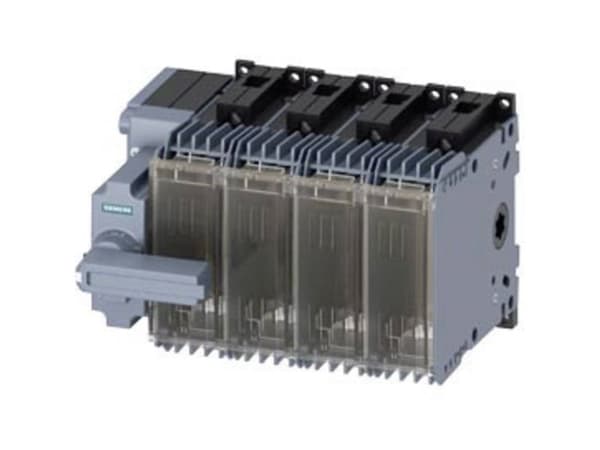

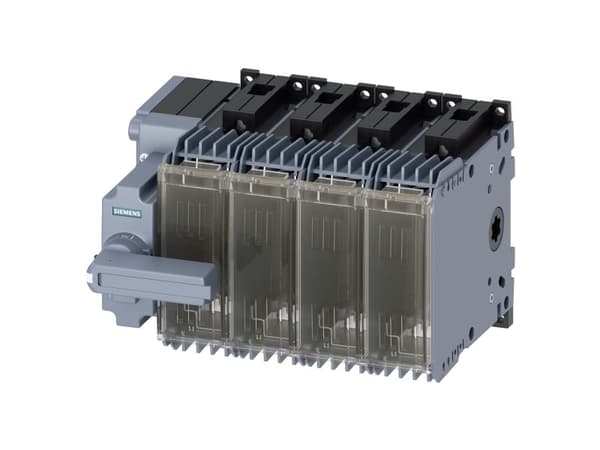

Name: Lastafbryder 4P 63A/SZ.000
Brand: Siemens
SKU: 20311943
Price: 4120 NOK
Availability: InStock

Lastafbryder 4P 63A/SZ.000 | SKU: 3KF1406-2LB11 | Brand: Siemens | EAN: 4001869535951<br>

Egenskaper

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Minimum ordreantall

Tekniske detaljer

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Type tilkobling for hovedkrets

Antall stenger inkludert

Betjeningselementtype

Nominell kontinuerlig strøm (Iu)

Integrert motordrift

Valgfri motordrift

Maksimal nominell driftsspenning (Ue AC)

Nødstoppversjon

Hovedbryterversjon

Sikkerhetsbryterversjon

Nominell driftseffekt (AC-23, 400 V)

Feilbeskyttelse

Nominell betinget kortslutningsstrøm (Iq)

Egnet for gulvmontering

Vekt og dimensjoner

Pakkevekt

The distance from the front to the back of the packaging.

Pakkedybde

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the top to the bottom of the packaging.

Lastafbryder 4P 63A/SZ.000

4 120 kr

4 120 kr

Produktbeskrivelse

Lastafbryder 4P 63A/SZ.000

4 120 kr

4 120 kr

Egenskaper
Internasjonal beskyttelses (IP)-kode	IP20
Minimum ordreantall	1 stykker

Tekniske detaljer
Samsvarssertifikat	CE, RoHS
Type tilkobling for hovedkrets	Frame clamp
Antall stenger inkludert	4
Betjeningselementtype	Andre
Nominell kontinuerlig strøm (Iu)	63 A
Integrert motordrift	Nei
Valgfri motordrift	Nei
Maksimal nominell driftsspenning (Ue AC)	690 V
Nødstoppversjon	Nei
Hovedbryterversjon	Ja
Sikkerhetsbryterversjon	Ja
Nominell driftseffekt (AC-23, 400 V)	30000 kW
Feilbeskyttelse	Nei
Nominell betinget kortslutningsstrøm (Iq)	100 kA
Egnet for gulvmontering	Ja

Vekt og dimensjoner
Pakkevekt	2,06 kg
Pakkedybde	190 mm
Pakkebredde	230 mm
Pakkehøyde	135 mm
