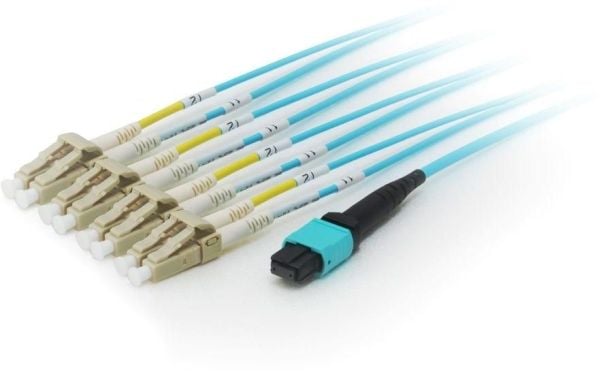

Name: Equip 25556507, 5 m, OM4, MTP, 4x LC
SKU: 4020123
Price: 1194 NOK
Availability: InStock

Equip 25556507, 5 m, OM4, MTP, 4x LC | SKU: 25556507 | Brand: EQUIP | EAN: 4015867192535<br>

color

weight

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

Produktfarge

Kjernediameter

Kledningsdiameter

Fibermodusstruktur

Innsettingstap

Jakkemateriale

Sertifikater

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

Weight of the product without packaging (net weight). If possible

Vekt

Datainnpakking

The distance from one side of the packaging to the other.

Pakkebredde

The distance from the top to the bottom of the packaging.

Equip 25556507, 5 m, OM4, MTP, 4x LC

1 194 kr

1 194 kr

Produktbeskrivelse

Equip 25556507, 5 m, OM4, MTP, 4x LC

1 194 kr

1 194 kr

Egenskaper
Kabellengde	5 m
Fiberoptisk type	OM4
Tilkobling 1	MTP
Tilkobling 2	4x LC
Connector 1 kjønn	Hunkjønn
Connector 2 kjønn	Hankjønn
Produktfarge	Cyan
Kjernediameter	50 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Multi-modus
Innsettingstap	0,5 dB
Jakkemateriale	Low smoke fire retardant zero halogen (LSFRZH)

Sertifikater
Samsvarssertifikat	REACH, RoHS

Miljømessige forhold
Driftstemperatur (T-T)	-20 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 80 °C

Vekt og dimensjoner
Vekt	96 g

Datainnpakking
Pakkebredde	275 mm
Pakkehøyde	175 mm
Pakkevekt	0 g

Logistikk data
Harmonisert system (HS)-kode	85447000

Equip 25556507, 5 m, OM4, MTP, 4x LC

1 194 kr

1 194 kr

Produktbeskrivelse

Spesifikasjoner

Equip 25556507, 5 m, OM4, MTP, 4x LC

1 194 kr

1 194 kr
