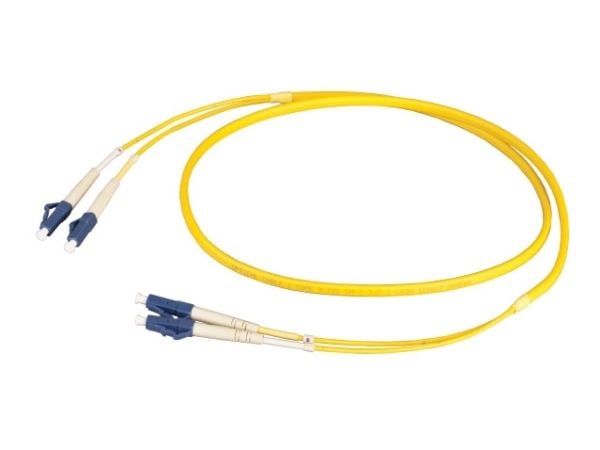

Name: EFB Elektronik O0350FT, 10 m, OS2, 2x LC, 2x LC
SKU: 10686265
Price: 233 NOK
Availability: InStock

EFB Elektronik O0350FT, 10 m, OS2, 2x LC, 2x LC | SKU: O0350FT.10 | Brand: EFB Elektronik | EAN: 4049759157708<br>

color

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

Produktfarge

A full-duplex system allows communication in both directions

Full tosidig

Kjernediameter

Kledningsdiameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fibermodusstruktur

The specific light frequencies, measured in nanometres, that the product is designed to transmit or receive (e.g. 1310).

Støttede bølgelengder

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

Innsettingstap

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Avkastning tap

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jakkemateriale

Sertifikater

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The distance from one side of the cable to the other

Kabeldiameter

Emballasjeinnhold

The number of individual units contained within a single sales package, measured in pc(s).

EFB Elektronik O0350FT, 10 m, OS2, 2x LC, 2x LC

233 kr

233 kr

Early Black Friday er i gang: se alle deals

Produktbeskrivelse

EFB Elektronik O0350FT, 10 m, OS2, 2x LC, 2x LC

233 kr

233 kr

Early Black Friday er i gang: se alle deals

Egenskaper
Kabellengde	10 m
Fiberoptisk type	OS2
Tilkobling 1	2x LC
Tilkobling 2	2x LC
Connector 1 kjønn	Hankjønn
Produktfarge	Gult
Full tosidig	Ja
Kjernediameter	9 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Multi-modus, Enkeltmodus
Støttede bølgelengder	1310 nm
Innsettingstap	0,2 dB
Avkastning tap	20 dB
Jakkemateriale	Low smoke zero halogen (LSZH)

Sertifikater
Samsvarssertifikat	RoHS

Miljømessige forhold
Driftstemperatur (T-T)	-40 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-40 - 85 °C

Vekt og dimensjoner
Kabeldiameter	5 mm

Emballasjeinnhold
Antall per pakke	1 stykker
