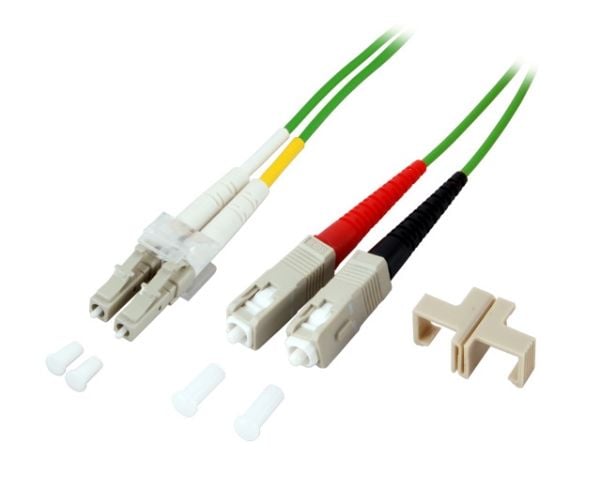

Name: EFB Elektronik O0323.1OM5, 1 m, OM5, 2x SC, 2x LC
SKU: 4600526
Price: 261 NOK
Availability: InStock

EFB Elektronik O0323.1OM5, 1 m, OM5, 2x SC, 2x LC | SKU: O0323.1OM5 | Brand: EFB Elektronik | EAN: 4049759178536<br>

color

Egenskaper

Kabellengde

The standardised properties of the fiber optic cable.

Fiberoptisk type

This is the first connector in the device.

Tilkobling 1

This is the second connector in the device.

Tilkobling 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Connector 1 kjønn

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Connector 2 kjønn

Produktfarge

A full-duplex system allows communication in both directions

Full tosidig

Kjernediameter

Kledningsdiameter

Fibermodusstruktur

Innsettingstap

Jakkemateriale

Bærekraft

Inneholder ikke

Sertifikater

Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

Samsvarssertifikat

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

Oppbevaringstemperaturomåde (Celsius)

Vekt og dimensjoner

The distance from one side of the cable to the other

EFB Elektronik O0323.1OM5, 1 m, OM5, 2x SC, 2x LC

261 kr

261 kr

Produktbeskrivelse

EFB Elektronik O0323.1OM5, 1 m, OM5, 2x SC, 2x LC

261 kr

261 kr

Egenskaper
Kabellengde	1 m
Fiberoptisk type	OM5
Tilkobling 1	2x SC
Tilkobling 2	2x LC
Connector 1 kjønn	Hankjønn
Connector 2 kjønn	Hankjønn
Produktfarge	Grønn
Full tosidig	Ja
Kjernediameter	50 µm
Kledningsdiameter	125 µm
Fibermodusstruktur	Multi-modus
Innsettingstap	0,2 dB
Jakkemateriale	Low smoke zero halogen (LSZH)

Bærekraft
Inneholder ikke	Halogen

Sertifikater
Samsvarssertifikat	RoHS
Sertifisering	ISO / IEC11801, IEC-60754-2, IEC-60332-1, IEC-61034, IEC 61753-222-2, EN 50265-2-1

Miljømessige forhold
Driftstemperatur (T-T)	-20 - 70 °C
Oppbevaringstemperaturomåde (Celsius)	-20 - 85 °C

Vekt og dimensjoner
Kabeldiameter	2 mm
Kabelvekt	8,2 kg/km

Logistikk data
Harmonisert system (HS)-kode	85447000
