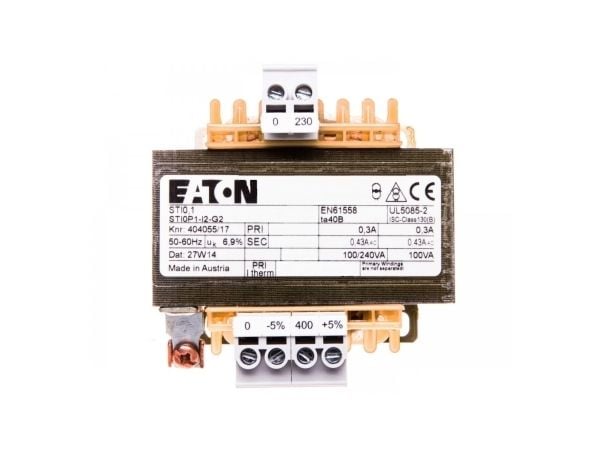

Name: Eaton 1-fase transformator 100VA 400/230V - 046630
SKU: 5378189
Price: 1678 NOK
Availability: InStock

Eaton 1-fase transformator 100VA 400/230V - 046630 | SKU: 046630 | Brand: Eaton Corporation | EAN: 4015080466307<br>

weight

Egenskaper

The voltage of the AC electricity that is inputted into the product.

AC-inngangsspenning

AC-inngangsfrekvens

AC utgangs spenning

Kortslutningsvern

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

Belastningskapasitet

The colour of the housing, which is the rigid casing that encloses and protects a piece of moving or delicate equipment.

Dekselfarge

Sertifisering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

Eaton 1-fase transformator 100VA 400/230V - 046630

1 678 kr

1 678 kr

Produktbeskrivelse

Eaton 1-fase transformator 100VA 400/230V - 046630

1 678 kr

1 678 kr

Egenskaper
AC-inngangsspenning	400 V
AC-inngangsfrekvens	50 - 60 Hz
AC utgangs spenning	230 V
Kortslutningsvern	Nei
Internasjonal beskyttelses (IP)-kode	IP00
Belastningskapasitet	100 VA
Dekselfarge	Metallisk
Sertifisering	UL 506; UL5085-1; UL 5085-2; CSA-C22.2 No. 66; CSA-C22.2 No. 66.1-06; CSA-C22.2 No. 66.2-06; IEC/EN 61558-2-2; CE

Miljømessige forhold
Driftstemperatur (T-T)	-25 - 40 °C

Vekt og dimensjoner
Bredde	85 mm
Dybde	89 mm
Høyde	91 mm
Vekt	2 kg
