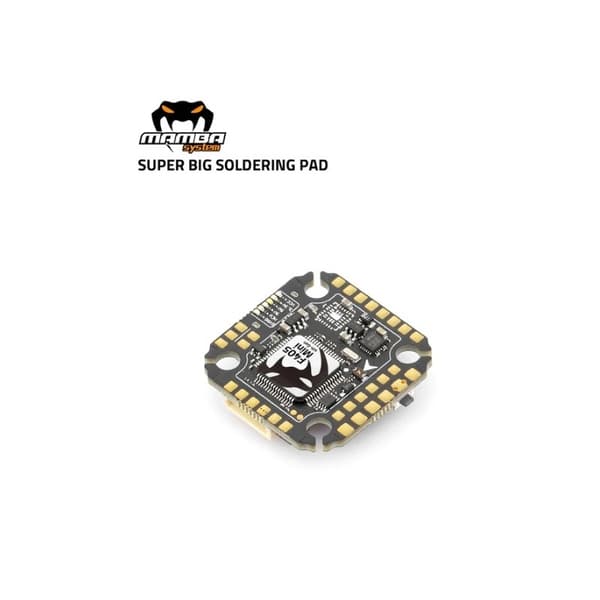

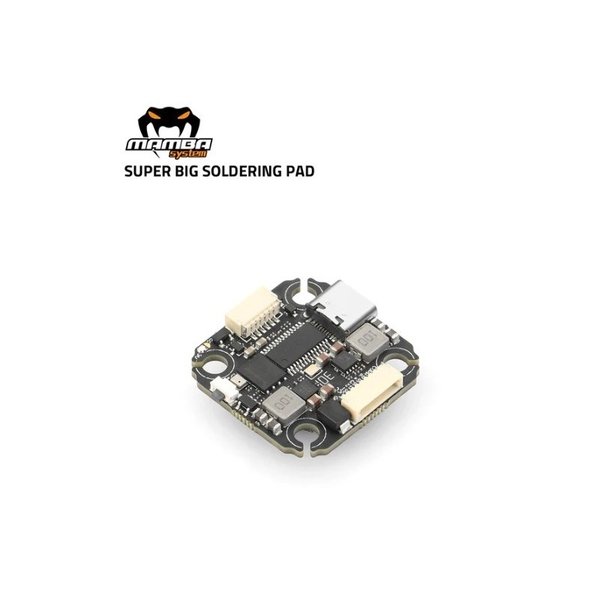

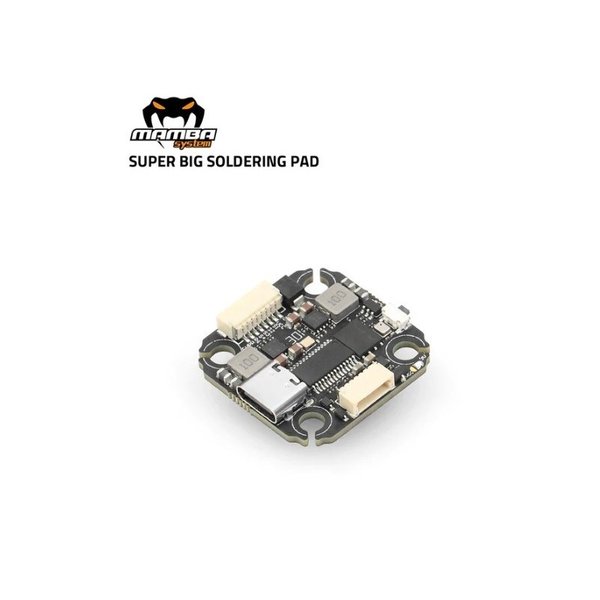

Diatone Mamba F405 Mini MK4 Flight Controller. Spesifikasjoner

Vekt 6g
MCU 168MHz STM32F405
Gyro ICM42688P
OSD AT 7456E
Blackbox 16MB flash
Uart x6
Buzzer Ja
Inn-spenning 6S (25.2V)
BEC 3.3V 0.5A / 5V 2.5A / 9V 2A
F.Port Ja
Mottaker TBS/SBUS/IBUS/DSM
Air Unit port Ja
MB/BF LED Ja
VTX Bryter Ja
Software Betaflight
Mounting 20x20 (M2)
Dimensjoner 29 x 29.5 x 6.5mm

Innhold
* 1x MK4 F405 MINI FC
* 5x Silicone damper M3
* 5x Silicone damper M2
* 5x M3 ESC insulation column
* 5x M2 ESC insulation column
* 1x 8pin single-ended cable for FC
* 2x 8pin cable
* 1x 6pin cable for air unit
