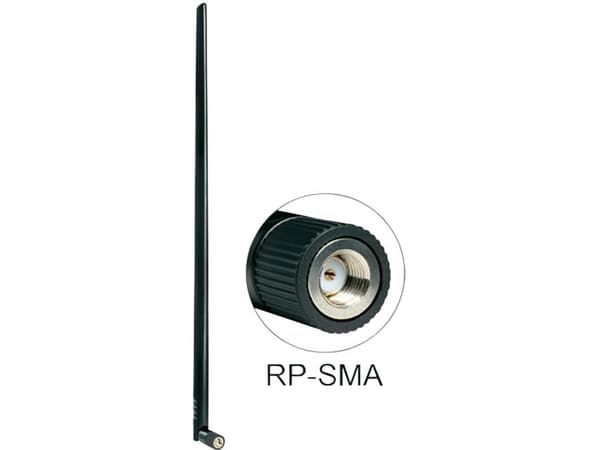

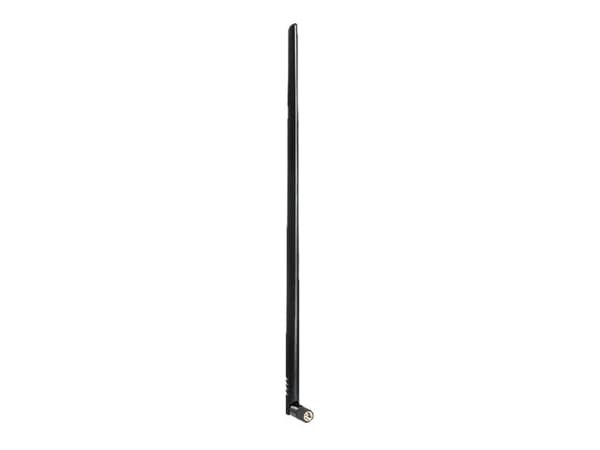

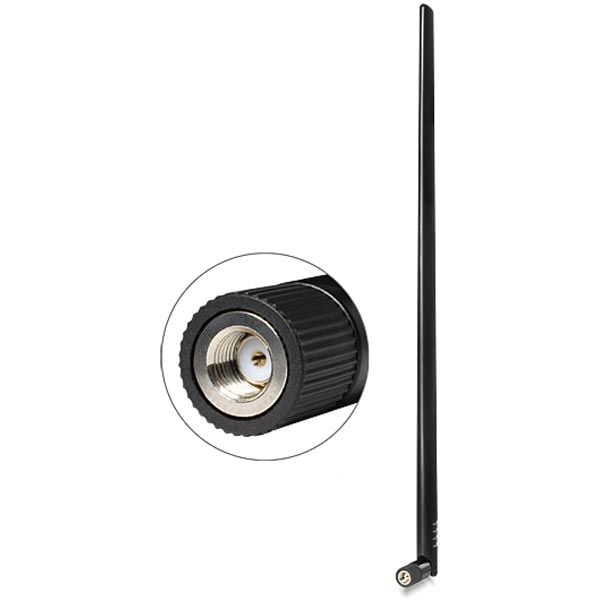

Name: Delock WLAN - Antenne - Wi-Fi - 9 dBi - rundtstrålende - svart
SKU: 1034501
Price: 488 NOK
Availability: InStock

Delock WLAN - Antenne - Wi-Fi - 9 dBi - rundtstrålende - svart | SKU: 88450 | Brand: DeLOCK | EAN: 4043619884506<br>

color

Ytelse

A small section of the spectrum of radio communication frequencies

Frekvensbånd og driftskanaler

Nettverksstandard

The effective resistance of an electric circuit or component to alternating current

Impedans

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction

Antenne forbedringsnivå (max)

Egenskaper

Antennetype

The way in which the antenna is connected to the device e.g. coaxial.

Antennetilkoblingstype

The orientation of the electric field relative to the Earth's surface (e.g. Horizontal or Circular polarization).

Polarisering

The ratio of the voltage standing wave pattern's maximum to minimum amplitude, indicating the efficiency of power transmission and the degree of impedance matching between the device and the transmission line.

Voltage Standing Wave Ratio (VSWR)

Produktfarge

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Logistikk data

The standardized numerical method of classifying traded products used by customs authorities around the world to identify goods for tariffs and statistics.

Delock WLAN - Antenne - Wi-Fi - 9 dBi - rundtstrålende - svart

488 kr

488 kr

Produktbeskrivelse

Delock WLAN - Antenne - Wi-Fi - 9 dBi - rundtstrålende - svart

488 kr

488 kr

Ytelse
Frekvensbånd og driftskanaler	2.4 - 2.5 GHz
Nettverksstandard	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedans	50 Ω
Antenne forbedringsnivå (max)	9 dBi

Egenskaper
Antennetype	Rundtstrålende antenne
Antennetilkoblingstype	RP-SMA
Polarisering	Vertikal polarisasjon
Voltage Standing Wave Ratio (VSWR)	2,0
Produktfarge	Svart

Miljømessige forhold
Driftstemperatur (T-T)	-10 - 55 °C

Vekt og dimensjoner
Bredde	13,5 mm
Dybde	13,5 mm
Høyde	352,1 mm

Logistikk data
Harmonisert system (HS)-kode	85177100
