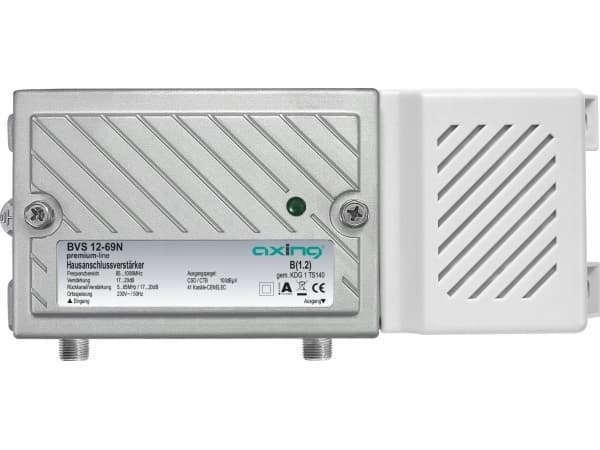

Name: Axing BVS 12-69N, F, AC, 6 W, 230 V, 50 Hz, -20 - 50 °C
SKU: 9372566
Price: 858 NOK
Availability: InStock

Axing BVS 12-69N, F, AC, 6 W, 230 V, 50 Hz, -20 - 50 °C | SKU: BVS01269N | Brand: Axing | EAN: 7611682004816<br>

Tekniske detaljer

Gevinst (forovervei)

Gevinst (bakovervei)

Støyfigur

The colour e.g. red, blue, green, black, white.

Produktfarge

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internasjonal beskyttelses (IP)-kode

The range of frequencies which can be produced by the device, or can be detected/used by the device to produce an output.

Frekvensområde

Sertifisering

Tilkoblingsevne

Tilkobling

Energihåndtering

Strømkildetype

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

Strømforbruk (vanlig bruk)

The voltage (V) which is required to power the product.

Inngangsspenning

The frequency (Hz) which is required to power the product.

Inngangsfrekvens

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Axing BVS 12-69N, F, AC, 6 W, 230 V, 50 Hz, -20 - 50 °C

858 kr

858 kr

Produktbeskrivelse

Axing BVS 12-69N, F, AC, 6 W, 230 V, 50 Hz, -20 - 50 °C

858 kr

858 kr

Tekniske detaljer
Gevinst (forovervei)	20 dB
Gevinst (bakovervei)	20 dB
Støyfigur	7 dB
Produktfarge	Grå
Internasjonal beskyttelses (IP)-kode	IP20
Frekvensområde	85 - 1006 MHz
Sertifisering	EN 50083-2 A

Tilkoblingsevne
Tilkobling	F

Energihåndtering
Strømkildetype	AC
Strømforbruk (vanlig bruk)	6 W
Inngangsspenning	230 V
Inngangsfrekvens	50 Hz

Miljømessige forhold
Driftstemperatur (T-T)	-20 - 50 °C

Vekt og dimensjoner
Bredde	192 mm
Dybde	40 mm
Høyde	89 mm

Emballasjeinnhold
Antall	1
