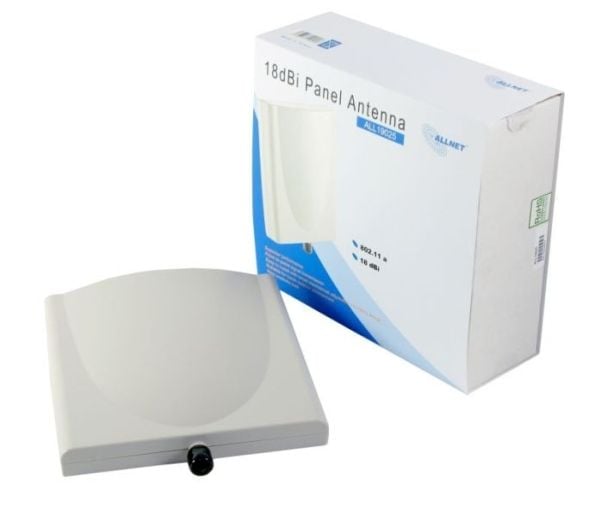

Name: ALLNET ALL19025, 18 dBi, 4,9 - 5,875 GHz, 50 ohm (O), 18°, 18°, sektorantenne
SKU: 3124799
Price: 1400 NOK
Availability: InStock

ALLNET ALL19025, 18 dBi, 4,9 - 5,875 GHz, 50 ohm (O), 18°, 18°, sektorantenne | SKU: ALL19025 | Brand: ALLNET | EAN: 4038816190253<br>

color

weight

Ytelse

A small section of the spectrum of radio communication frequencies

Frekvensbånd og driftskanaler

The effective resistance of an electric circuit or component to alternating current

Impedans

The angular width of the signal pattern in the horizontal plane, measured in degrees.

Horisontal strålingsbredde

The angular extent of the signal or light emission in the vertical plane, measured in degrees.

Vertikal strålingsbredde

Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction

Antenne forbedringsnivå (max)

Egenskaper

Antennetype

The way in which the antenna is connected to the device e.g. coaxial.

Antennetilkoblingstype

The orientation of the electric field relative to the Earth's surface (e.g. Horizontal or Circular polarization).

Polarisering

The ratio of the voltage standing wave pattern's maximum to minimum amplitude, indicating the efficiency of power transmission and the degree of impedance matching between the device and the transmission line.

Voltage Standing Wave Ratio (VSWR)

Produktfarge

What the casing of the product is made of.

Kroppsmateriale

The maximum amount of electrical power the component can safely manage without failure, typically measured in watts (W).

Strømhåndtering

What size the mounting head of the product is, to couple it with a camera.

Montering

Miljømessige forhold

The minimum and maximum temperatures at which the product can be safely operated.

Driftstemperatur (T-T)

Vekt og dimensjoner

The measurement or extent of something from side to side.

Bredde

The distance from the front to the back of something.

Dybde

The measurement of the product from head to foot or from base to top.

Høyde

Weight of the product without packaging (net weight). If possible

ALLNET ALL19025, 18 dBi, 4,9 - 5,875 GHz, 50 ohm (O), 18°, 18°, sektorantenne

1 400 kr

1 400 kr

Produktbeskrivelse

ALLNET ALL19025, 18 dBi, 4,9 - 5,875 GHz, 50 ohm (O), 18°, 18°, sektorantenne

1 400 kr

1 400 kr

Ytelse
Frekvensbånd og driftskanaler	4.9 - 5.875 GHz
Impedans	50 Ω
Horisontal strålingsbredde	18°
Vertikal strålingsbredde	18°
Antenne forbedringsnivå (max)	18 dBi

Egenskaper
Antennetype	Sektorantenne
Antennetilkoblingstype	N-type
Polarisering	Vertikal polarisasjon
Voltage Standing Wave Ratio (VSWR)	2,0:1
Produktfarge	Grå, Hvit
Kroppsmateriale	Akrylonitril-butadien-styren (ABS)
Strømhåndtering	5 W
Montering	Vegg

Miljømessige forhold
Driftstemperatur (T-T)	-40 - 80 °C

Vekt og dimensjoner
Bredde	215 mm
Dybde	50 mm
Høyde	200 mm
Vekt	825 g
