H55H004XXT 550E Three-Blade Rotor Head
H55H004XXT 550E Three-Blade Rotor Head
H55H004XXT 550E Three-Blade Rotor Head
H55H004XXT 550E Three-Blade Rotor Head

Align

H55H004XXT 550E Three-Blade Rotor Head

2 500 kr

2 500 kr

Få igjen

Ti., 22 april - to., 24 april


Sikker betaling

14 dagers åpent kjøp


Selges og leveres av

Elefun


Produktbeskrivelse

Tre blads rotorhode, passer til T-Rex 550/600. Dette rotorhode gir deg overlegent stabilitet og lavt tyngdepunkt.

Informasjon fra produsent

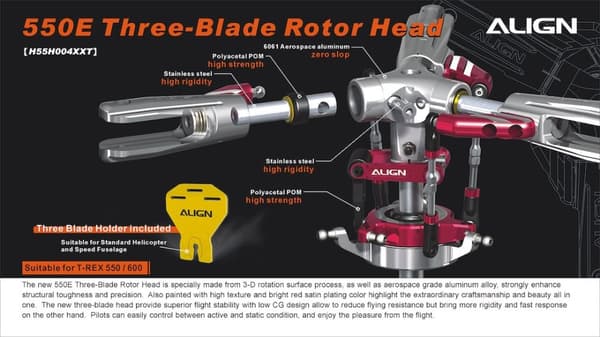

The new 550E Three-Blade Rotor Head is specially made from 3-D rotation surface process, as well as aerospace grade aluminum alloy, strongly enhance structural toughness and precision. Also painted with high texture and bright red satin plating color highlight the extraordinary craftsmanship and beauty all in one. The new three-blade head provide superior flight stability with low CG design allow to reduce flying resistance but bring more rigidity and fast response on the other hand. Pilots can easily control between active and static condition, and enjoy the pleasure from the flight.

Spesifikasjoner
* Three-Blade Rotor Housing x 1
* Metal Main Rotor Holder x 3
* Three-Blade Shaft Set x 3
* Head Damper (8x12.9x6.5mm) x 3
* Elevator ball link (5x6x19mm) x 6
* 550E Three-Blade Shaft screw x 3
* Linkage rod A x 3
* Spacer (8x11x1.3mm) x 3
* Spindle bearing spacer (10x13.8x0.4mm) x 6
* Thrust Bearing F8-14M (8x14x4.5mm) x 3
* MR148ZZ Bearing (8x14x4mm) x 6
* Washer (5x12x1mm) x 3
* Socket Collar Screw (M3x6mm) x 6
* Socket Screw (M3x10mm) x 2
* Socket Button Head Screw (M2.5x8mm) x 2
* Socket Collar Screw (M3x19mm) x 2
* Socket Collar Screw (M4x25mm) x 3
* Socket Screw (M5x10mm) x 3
* M3 Nut x 2
* M4 Nut x 3
* Main Blade Grip Arm x 3
* 5 Linkage Ball B (M3x4) x 3
* Elevator Arm Set x 2
* Linkage Rod Set x 1
* Washer (3x4.8x0.3mm) x 2
* Linkage rod holder x 6/
* 550E Three-Blade Rotor Main Shaft x 1
* Main shaft spacer 0.3mm x 1
* Main shaft spacer 0.5mm x 1
* CCPM Metal Swashplate x 1
* Linkage Ball B (M3x4) x 5
* 5 Linkage ball D (M3x3.5) x 1
* 5 Long linkage ball (M3x4) x 1

Artikkel nr.

1dfab801-bfae-4af1-93ea-7288de8fca58

Egenskaper

Produkttype

Rotorhode

Merkekompatibilitet

ALIGN

Korrekt bruk

Helikopter

Kompatibilitet

T-REX 550/600

Materiale

Metall

Modell/Type

Radio-Controlled (RC) Model Parts

Datainnpakking

Skruer inkludert

Ja
