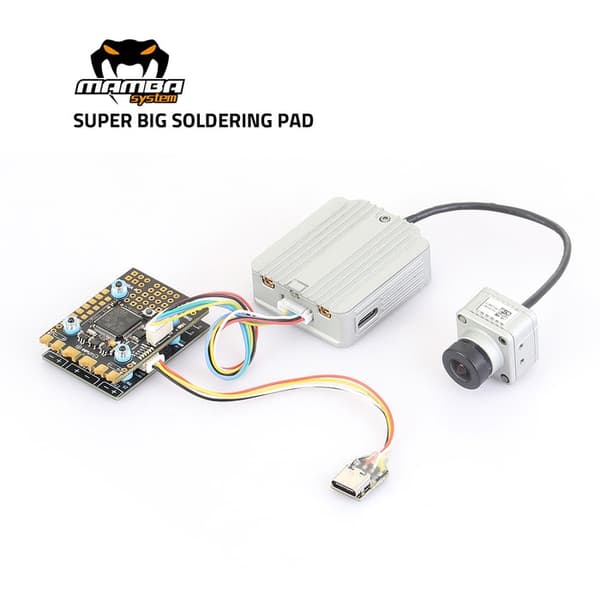

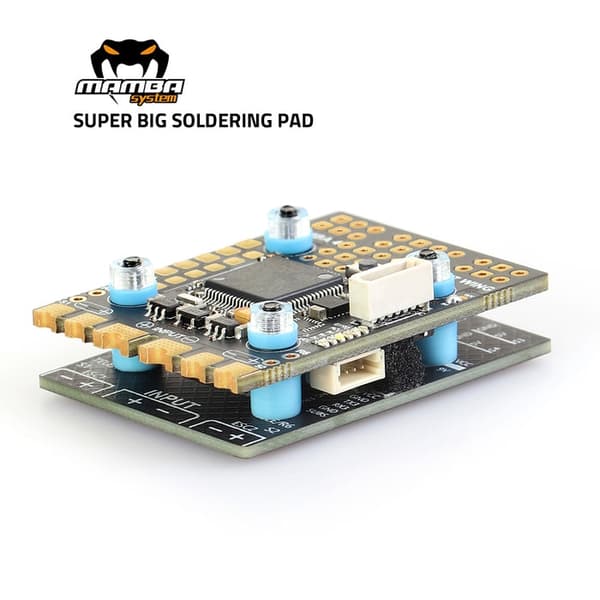

Diatone Mamba F722 Mini Wing MK4 FC kommer med 20mm/M2 mounting og er designet for å kunne brukes med DJI digital video. Brukes på fixed wing modeller.MAMBA MK4 F722WING
MCU: 216MHz STM32F722
GYRO: ICM-42688-P
INAV Target?MAMBA F722_WING
OSD: Yes
Blackbox: 16M Flash Memory
Barometer: SPL06
Uarts: 8 Set
I2C: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 8 Set
ESC Soft: Dshot300/600
Power Led: Yes
LED Controller:INAV LED
AIR UNIT Port: Yes
VTX Switch: Yes
Receiver Protection: Yes
TVS Protection: Yes
Continue current: 40A
Peak current: 50A
INAV Current Meter Scale?225
BEC:3.3V 0.5A& 5V 3A& 9V 2A
Input: 3~6S Lipo (12.6~25.2V)
Mounting size: 20mm,M2
