Connbox CB1 (XLR-3F)

• Isolates and minimises handling and cable-borne noise
• Greatly improves audio quality of recordings
• A ready-to-use solution to connection problems

The Connbox has been designed to isolate and greatly reduce handling and cable-borne noise to the microphone. Connbox CB1 hardwired (XLR-3F tail not detachable) and is suitable for mono microphones with a 3-pin XLR connector.

An effective and ready-to-use solution to connection problems, the Connbox will enable professional sound recorders to achieve clean, high quality audio recordings.

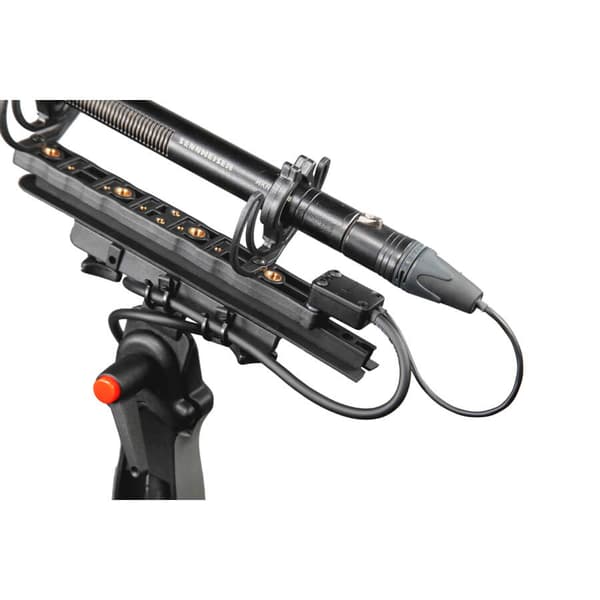

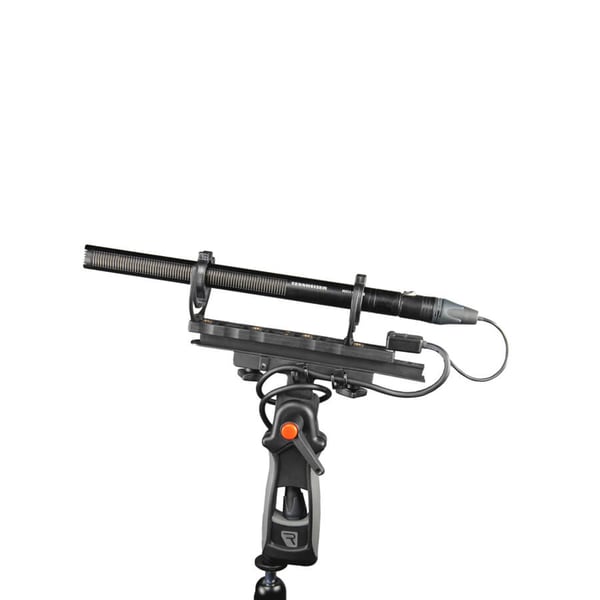

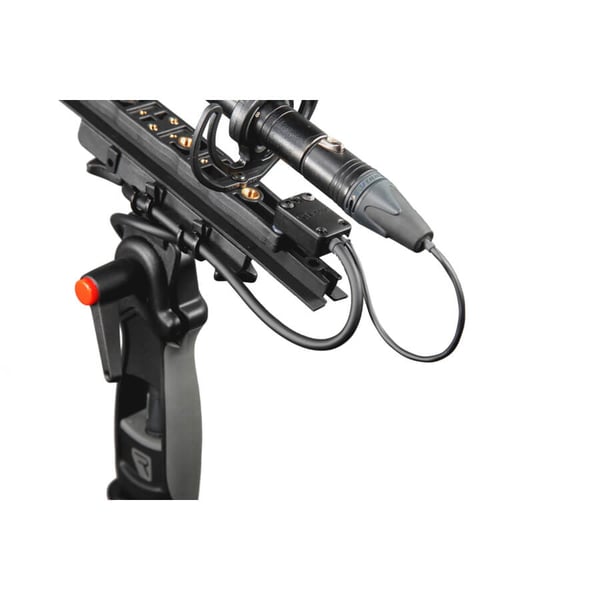

Acting as a transition connector and anchor point for the microphone tail, the lengths of cable are set to work perfectly with the microphone fitted in the windshield, without touching the internal surface of the basket. The soft cable then greatly reduces the transmission path of cable-borne noise, thus further reducing cable rumble.

The Connbox is made of the highest quality components, using Gold 3-pin Neutrik X-series XLR connectors, and an ultra soft Mogami star-quad cable.

Specifications:
INPUT
Input connector: XLR -3F
Input Connbox Connector: Hardwired
Input Cable outside diameter: 2.5mm
Input Cable Exposed Length: 130mm
Input Cable Band Colour: Plain

OUTPUT
Output Connector: XLR – 3M
Output Connbox Connector: Hardwired
Output Cable Outside Diameter: 4.8mm
Output Cable Exposed Length: 450mm
Output Cable Band Colour: Plain
