Suitable for M480L / M690L.
Must with APS-M. Can be used with OSD+FPV Video Transmitter, G2/G3 Gimbal, Retractable Landing Gears, External Status LED.

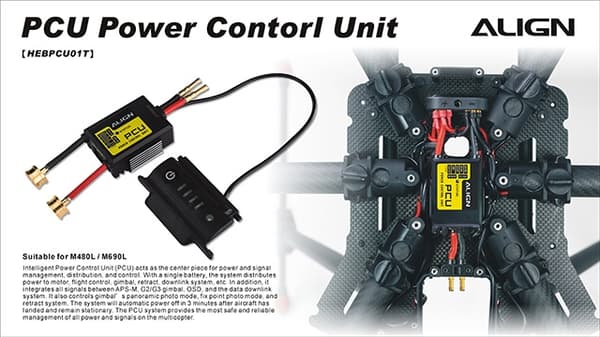

Intelligent Power Control Unit (PCU) acts as the center piece for power and signal management, distribution, and control. With a single battery, the system distributes power to motor, flight control, gimbal, retract, downlink system, etc. In addition, it integrates all signals between APS-M, G2/G3 gimbal, OSD, and the data downlink system. It also controls gimbal’s panoramic photo mode, fix point photo mode, and retract system. The system will automatic power off in 3 minutes after aircraft has landed and remain stationary. The PCU system provides the most safe and reliable management of all power and signals on the multicopter.

* Input Voltage: 13,2V - 25.2V(4S-6S Li-Po)
* Operating Frequency: 500KHz
* Operating Temperature: -5degC- 45degC
* Dimension: 62x35x26mm
* Weight: Approx 94.56g

PCU Power Control Unit Set x 1
M480 Multi-purpose Battery Cover x 1
Multicopter 4MM Gold Connector (Male) x 2 (4.9x20mm)
Multicopter 3.5MM Female Terminal x 2 (2x14.4x12.5mm)
Socket Screw - Nylok x 2 (M2.5x4mm)
